Case Owner Extension Lookup



1.Goal - Get the extension number of the case owner of the case number entered by the caller from the Salesforce to do the call distribution.



2. Extension look up service - Help



3.Automatic Call Distribution for Salesforce set up for Case Owner Extension Look Up

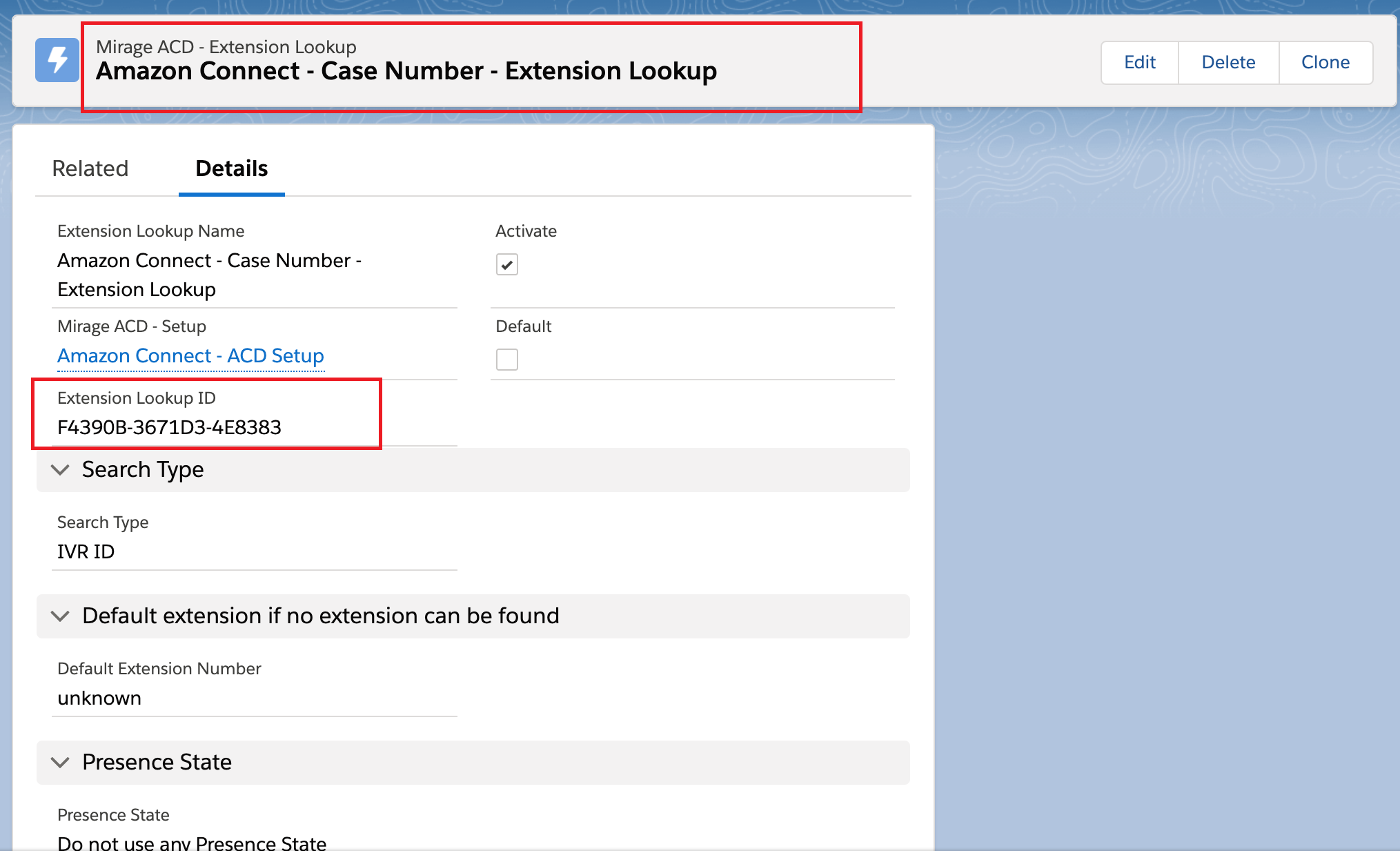

CaseNumberExtensionLookUp

CaseNumberExtensionLookUp_2





4.Parameters required for Extension data look up service



1.Extension Lookup ID



CaseNumberExtensionLookUp



2.Org Id

3.PBX ID

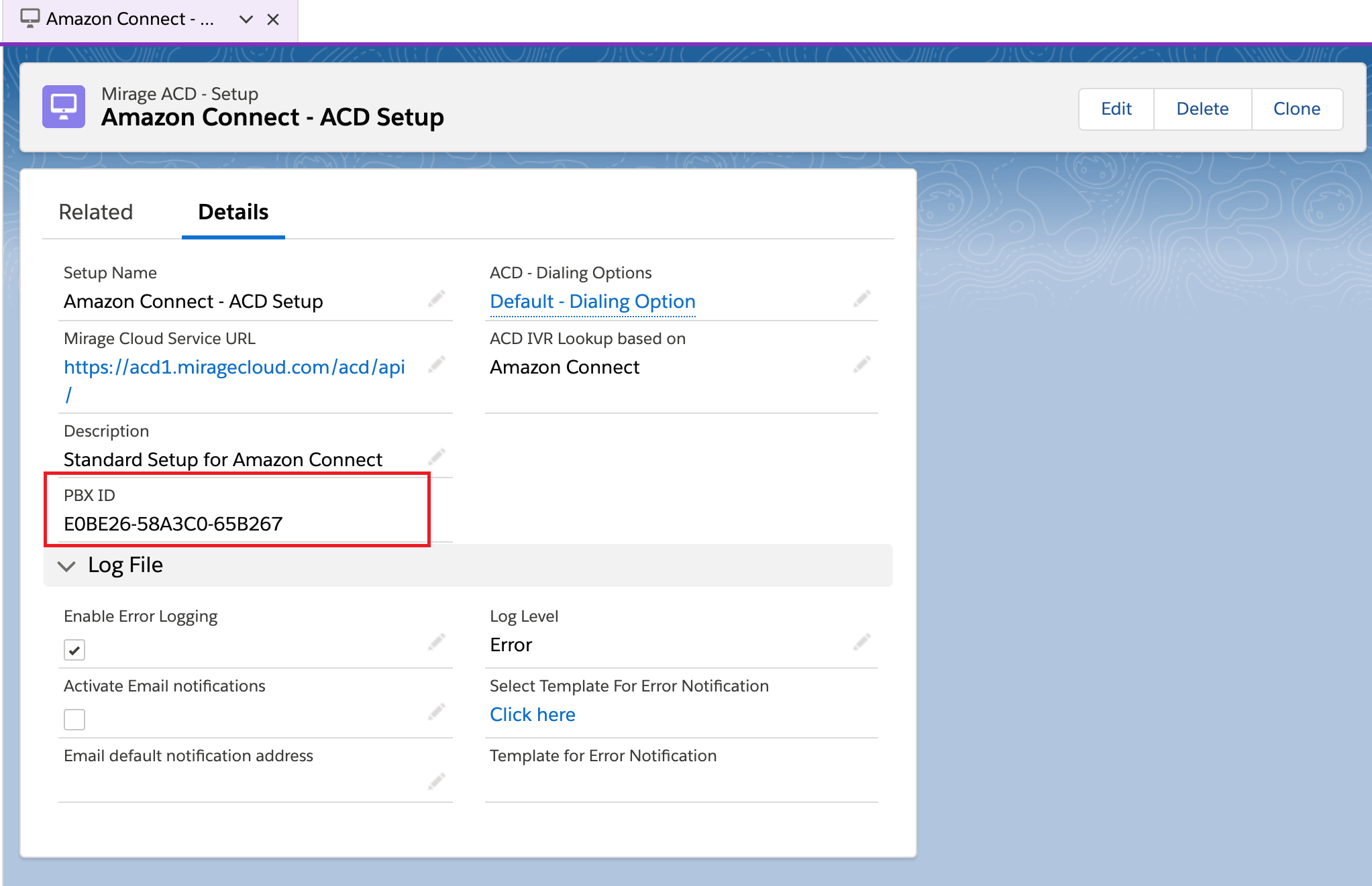

MainSetUp_PBXID



4.IVR Id

5.PBX Token



Amazon Connect changes for Case Owner Extension Lookup


1. Create a AWS lambda function for extension look up which will send the required parameters to the extension look up service. It will return the extension number of the case owner doing a search and using the case number from the IVR input.

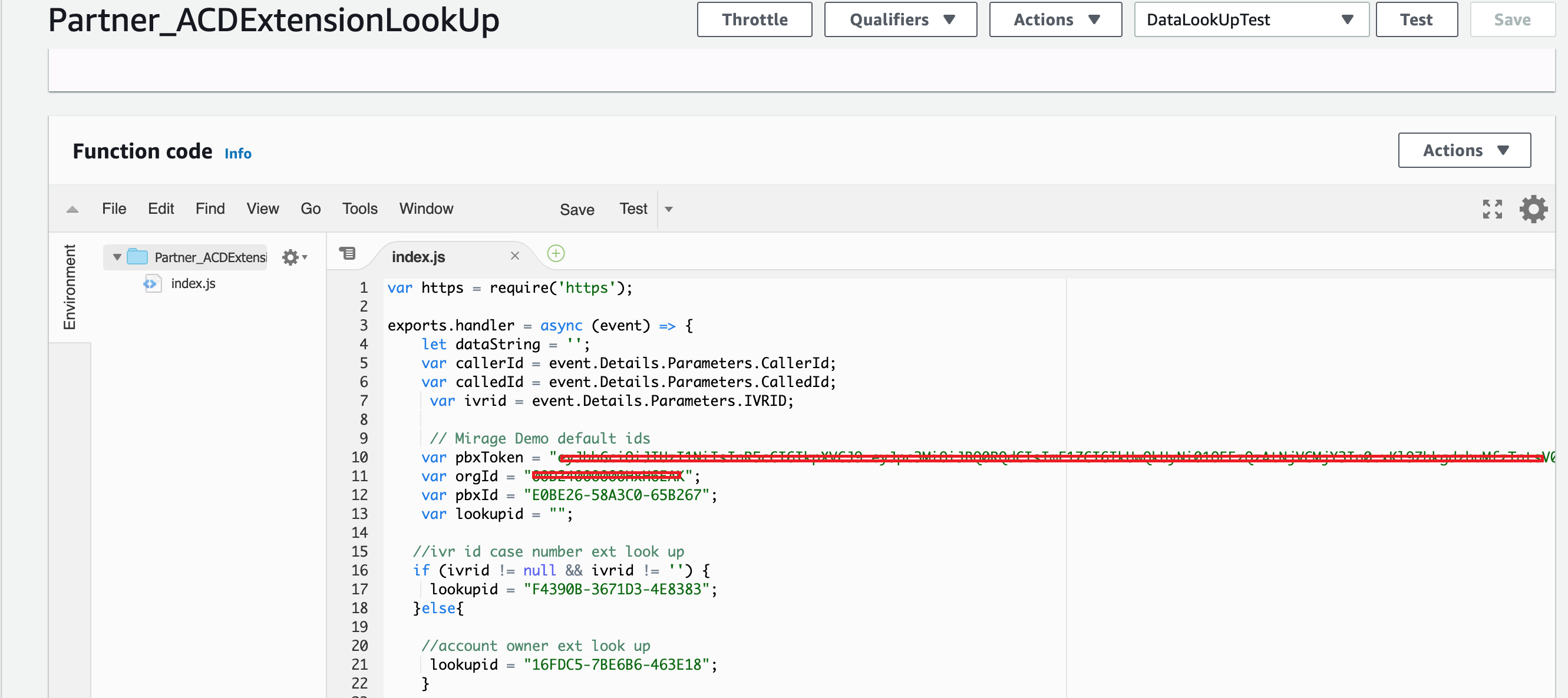

Lambda_ExtLookUp_0

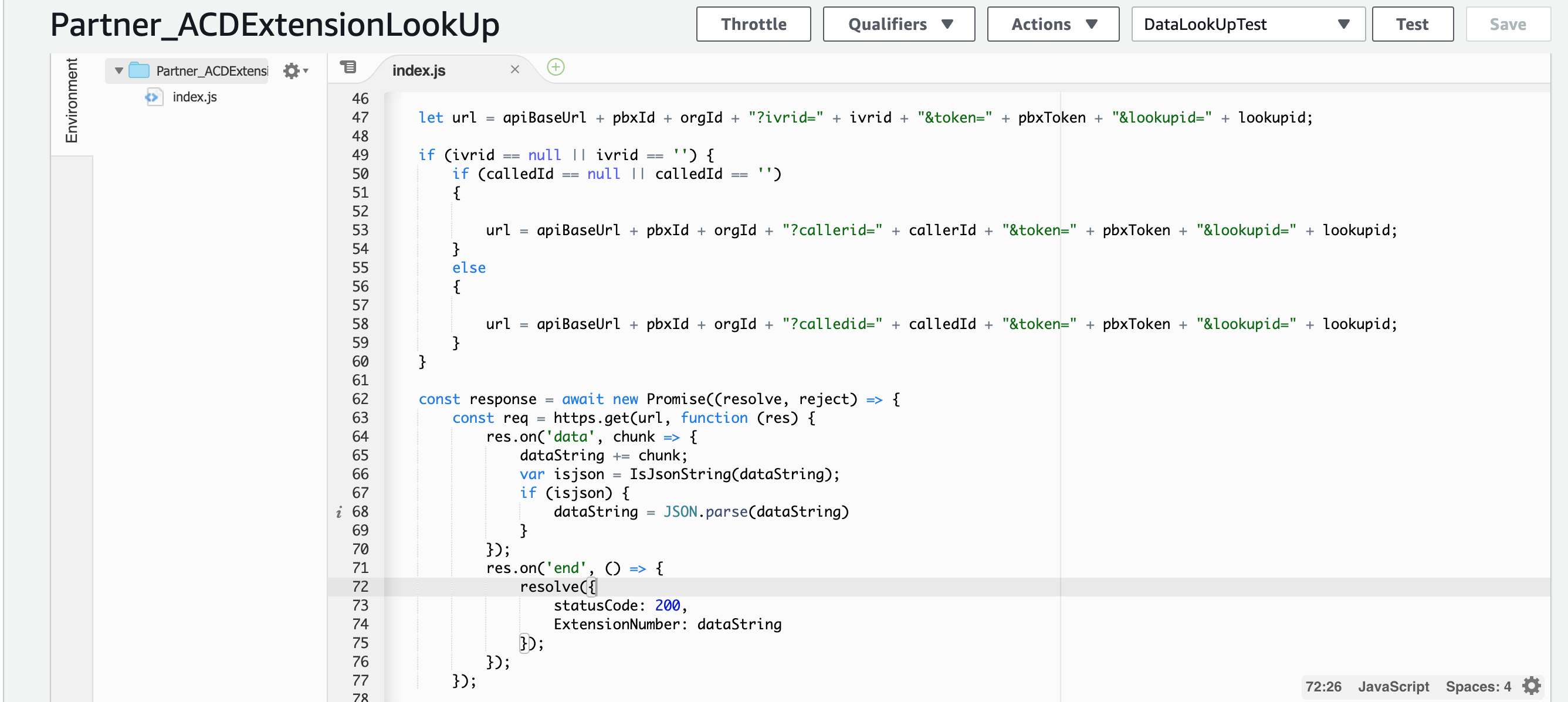

lambda_ExtLookUp



2. Create contact flow in Amazon Connect to call the lambda function and distribute the call to the extension number returned by the lambda.

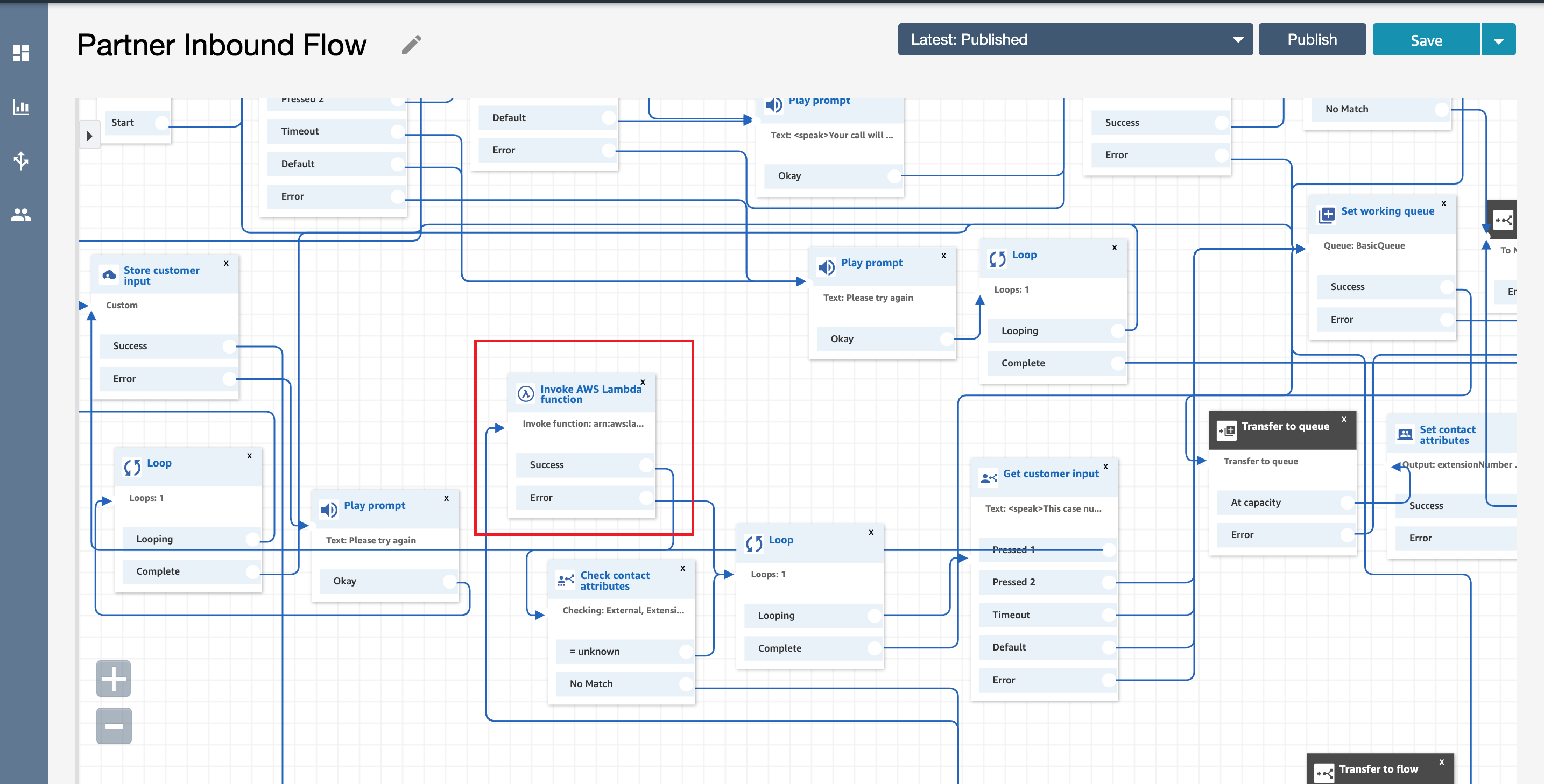

IVRExtLookUp_1

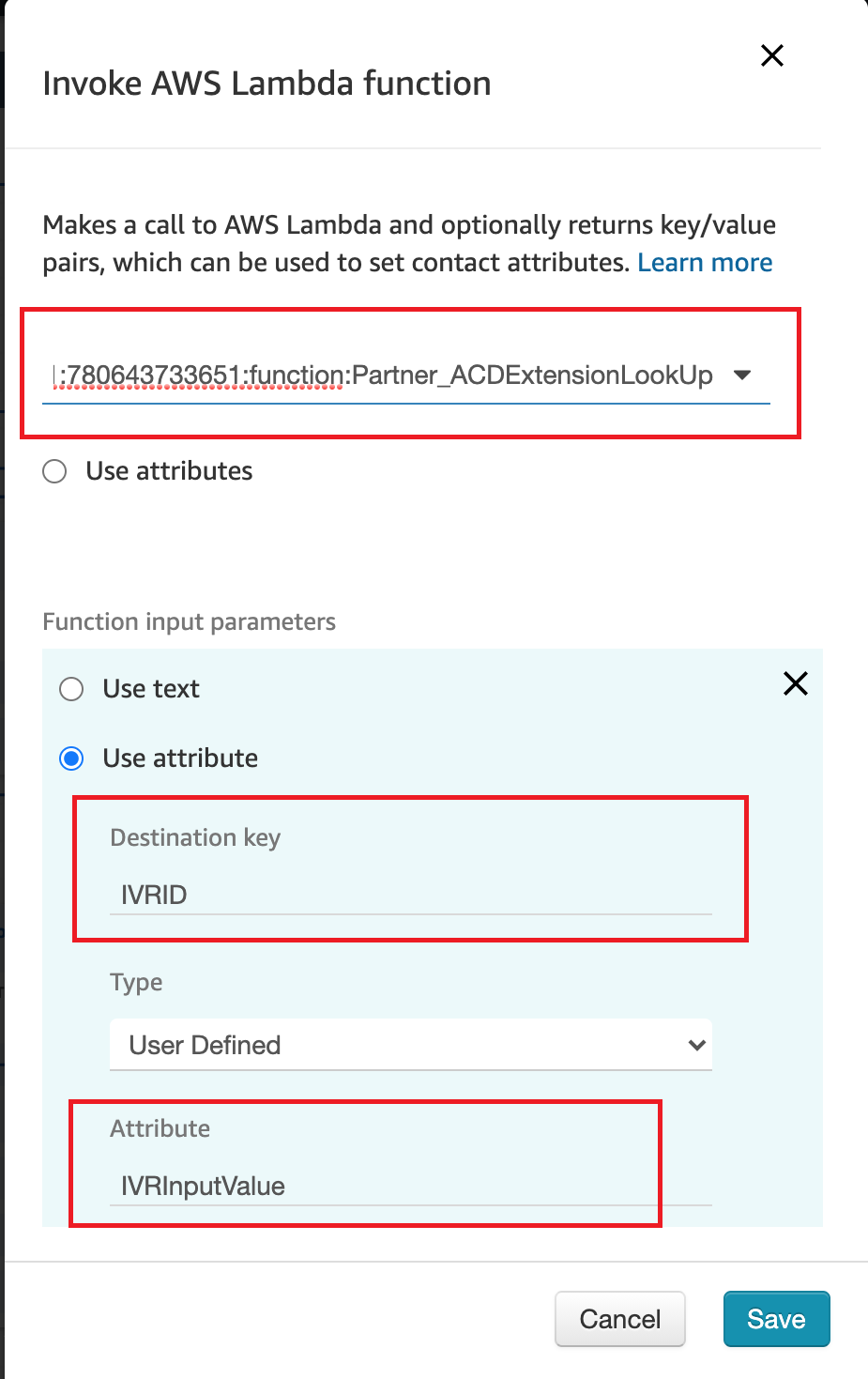

IVRExtlookUp_2





Note : To test any Automatic Call Distribution for Salesforce set up, you can use Custom Configuration Test Tool available in PBX test tool
