The Activation Server is a .NET service and needs a Windows server system with .NET.
•Windows Server 2003 SP2 or 2008 R2 (recommended), 32 or 64bit. The latest service pack is required. Windows Vista, Windows 7 or Windows 8 can be used for testing purposes
•Microsoft Internet Information Internet Information Server (IIS) (manual setup for Windows Server necessary)
•ASP.NET 3.5.1 (manual setup for Windows Server necessary)
•ASP.NET Ajax Extension (automatically installed)
•Open XML SDK (automatically installed)
•Microsoft SQL Server or SQL Server Express (2005 or higher up to SQL Server 2008) (automatically installed)
•Right to start an executable on the server
•Static IP - server must be reachable through Internet access
•Browser (Minimum Version required) IE 8, Firefox 16, Chrome 22, Safari 5 (Windows), Safari 6 (MAC)
The installer package checks, if all necessary components are installed and if it is missing, it will automatically download the component. The installation of every component is described in the following chapters.
We recommend installing the server on a virtual machine. This simplifies the installation and maintenance.
If you have multiple websites running on the same server, a good idea is to create a subdomain for the Activation Server.
If you are running a server operating system, you have to install the ISS and the NET framework through the Server Manager.
Depending on the Windows Server version the steps could be a bit different.

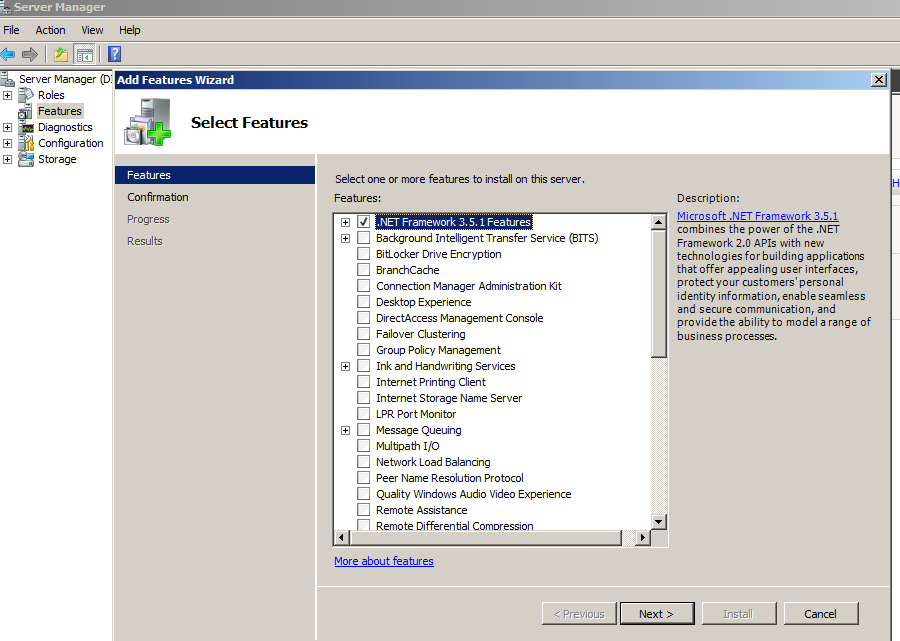

•Click Start, point to Administrative Tools and click Server Manager. •Click Add Features •Select .NET Framework 3.5.1 •Review your installation selections and click Install.
To install the IIS

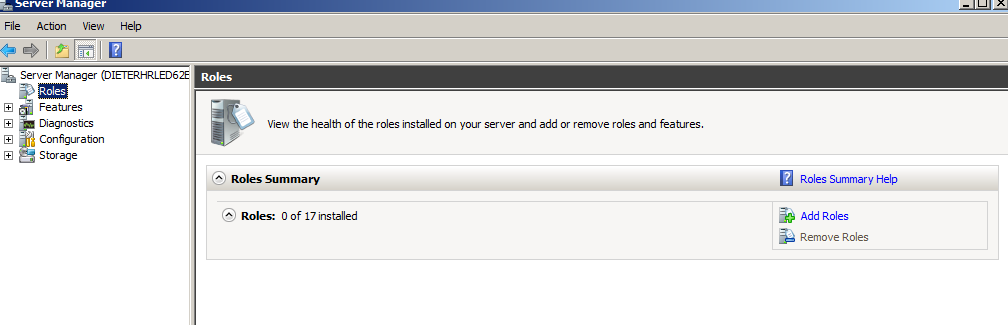

•Click Start, point to Administrative Tools and click Server Manager. •Click Add Roles.

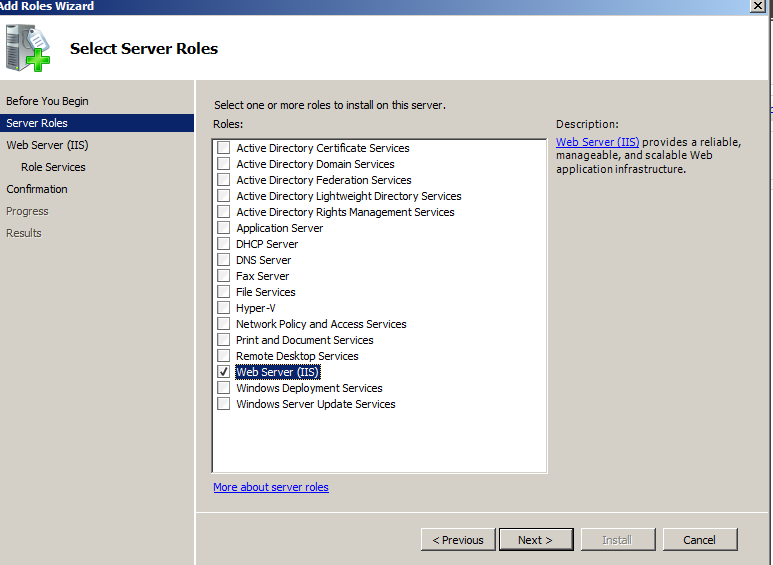

•The Add Roles Wizard will appear. Click Next. •If any required features are missing, you will be prompted to install them by clicking the Add Required Features button. •From the Select Server Roles window, click the box beside the Web Server (IIS) option. Additionally select Application Server which will install ASP.NET 3.5.1 Also select Web Server (IIS) support. Click Next.

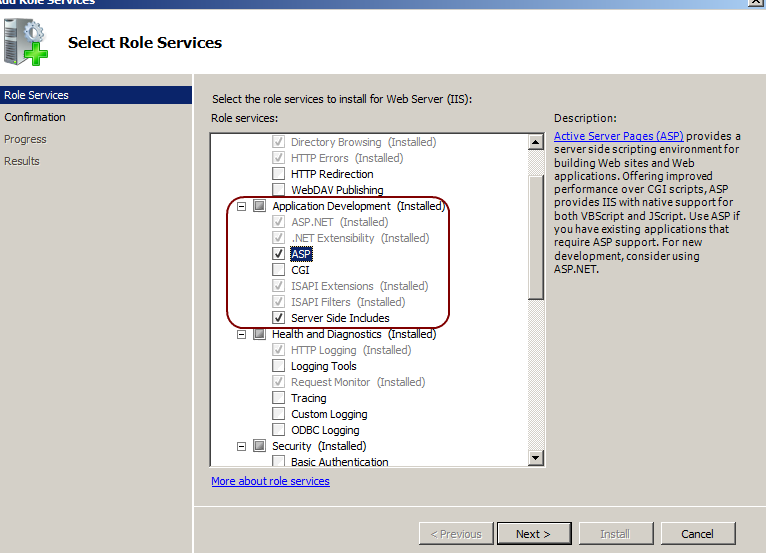

Select all components which are highlighted in red - especially ASP and Server Side Includes are required

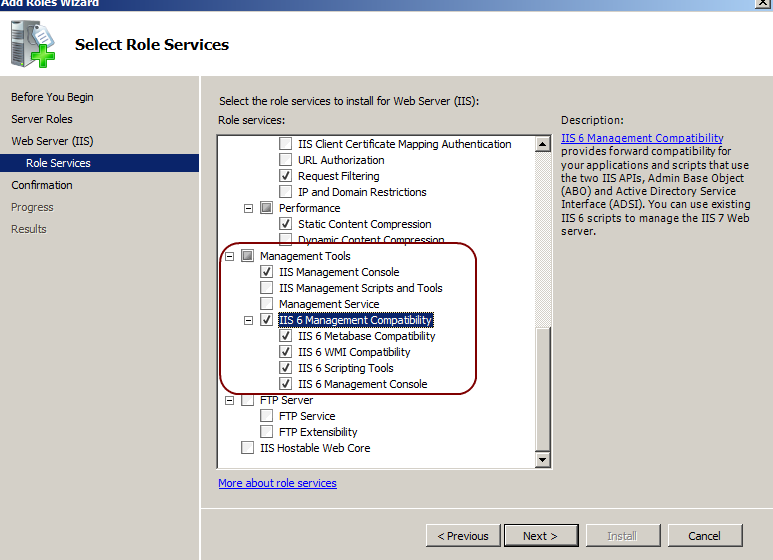

Also select the IIS 6 Management Compatibility (see screenshot which options to check)
• If you are unsure what a service is for, select the service and a short description will appear. •Click Next. •Review your installation selections and click Install. •When the installation is complete, review the results in the ‘Installation Results’ window and click Close. |
Note: Windows 2003 Server requires Service Pack 2

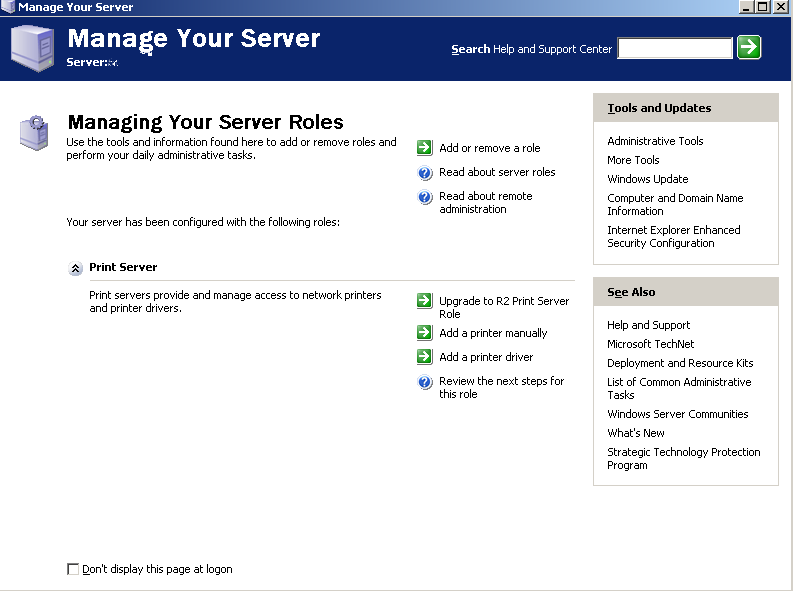

Install IIS•Click Start, point to Administrative Tools and click Server Manager. •Click Add or remove a role

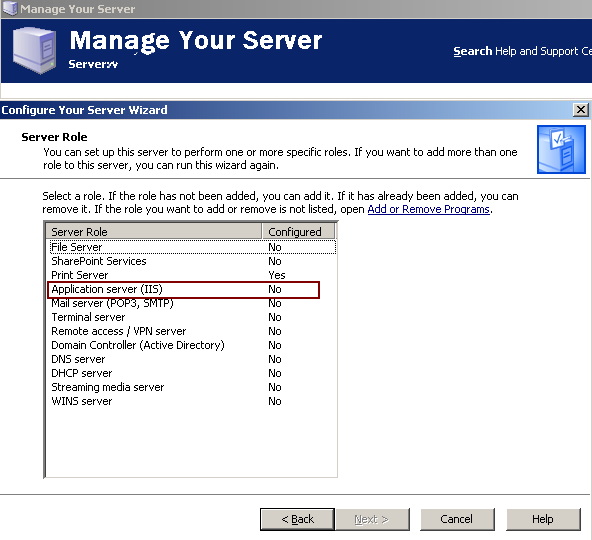

•Select Application Server (IIS)

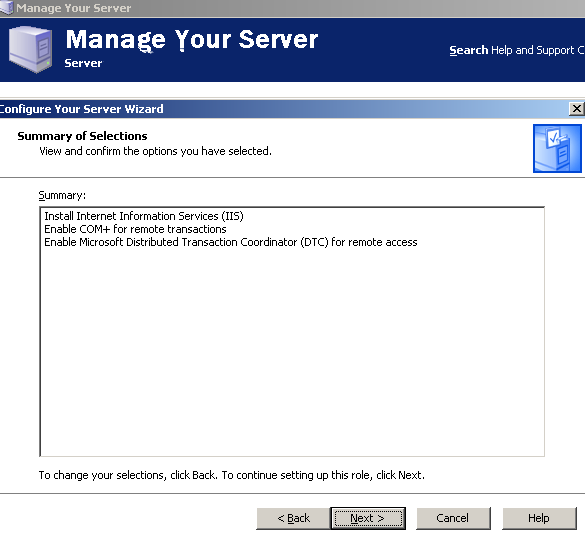

•Review your installation selections and click Install.
Install .NET Framework

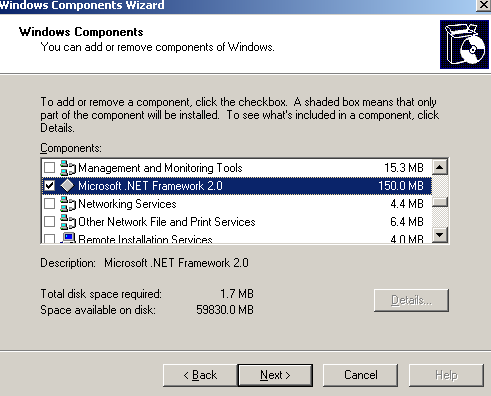

•From the Start menu, point to Control Panel, and then click Add or Remove Programs. •In the Add or Remove Programs dialog box, click Add/Remove Windows Components. •In the Components box in the Windows Components wizard, select the Microsoft .NET Framework 2.0 check box, and then click Next •When the Windows Components wizard has finished configuring Windows Server 2003, click Finish.

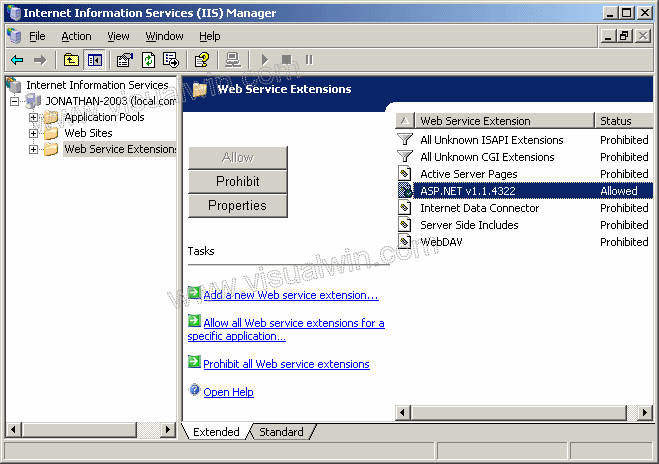

Activate ASP.NET1.Click Start, point to Administrative Tools 2.Select Internet Information Services 3.Click on Web Service Extensions and right click on ASP.NET v1.1.4322 4.Select: Allowed
|
