The Activation Server has 2 different types of error messages



Error codes of the DLL

If an online activation is not successful, the DLL creates an error code like error 3013 or 3014. All DLL related errors can be found in the chapter DLL - Error and Return Codes. The details of an error can be found in the server log file.



Error codes of the Activation Server

Errors which are created on the server side are written into a log file. The details of an error can be found in the server log file.



2013



This error could have 2 reasons:



The web service has not all rights which are needed to create / modify files on the folder ..\alg - see Necessary Rights for ASP Service

Your license file expired or more projects are used then included in the license - for more details view the log file



3001



Connection to the Activation Server could not be established. Typical causes of this error are:



Activation Server is down

WebServiceURL in the project template is wrong

Client does not have Internet access or access is blocked by a firewall

Client Proxy        Server settings are wrong

Check the settings in your Web Browser Tool and use the identical settings (e.g. to check the settings of Microsoft Internet Explorer you should open it and choose the menu Extras/Internet Options. Select TAB Connections and click on LAN Settings.). There you find the Proxy Server settings.

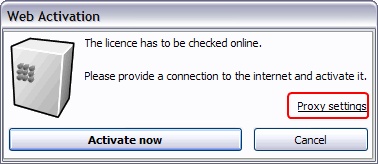

In the Activation Dialog of Licence Protector, you should click on the link "Proxy Settings". If there is a Proxy Server set in your Web Browser, you should check "Use Proxy Server". If you use Microsoft Internet Explorer simply check "Use settings from Internet Explorer". If you use another Web Browser or you want to enter the Proxy Server data manually, don't check "Use settings from Internet Explorer" but enter the address of your Proxy Server (IP address or server name) and your Proxy Port (mostly 80 or 8080). Copy these values from the settings in your Web Browser.






MAC Edition

The Project Secure Key, used in the project template does not match with the PSK used in the command validate

The password, used in the project.config file does not match with the password used in the command validate

The project name, used in the project.config file does not match with the password used in the command validate






3002



Configuration file licprotectorws.config  or a file in the folder \pconfig could not be read. Possible reasons are



The XML format is wrong. Use an XML editor to edit the file and check all configuration settings

The defined project config file is missing

The defined project main file (defined in the config file) is missing





3003



ProjectID is missing - check the configuration file in the folder \pconfig  (older installations  licprotectorws.config )





3004



An unknown instcode is used - check the configuration file in the folder \pconfig (older installations  licprotectorws.config )



3005



No projects could be found - check the configuration file in the folder \pconfig (older installations  licprotectorws.config )





3006



Bad request



ProjectName is empty - check project template

A request to the Activation Server was made not using Licence Protector



3007



Unknown request type. This situation could only occur, if the Licence Protector version is newer than the Activation Server server version and Licence Protector uses a command, which is unknown to the Activation Server



3008



Writing to database failed. Check, if the database is running and check the database setup.



3009



Reading from database failed. Check, if the database is running and check the database setup



3010



The Activation Key was already used or is locked.



Increase the number, how often the key can be used (Maximum Key / ID Usage) or unlock the key - details



3011



Unknown project name - the ProjectID used in the configuration file in the folder \pconfig (older installations  licprotectorws.config )must match the project name, defined in the project template. Check the activation workflow configuration file, if the file name of the project file is correct.



The project name should contain no spaces and is case sensitive - see project name.



The error also occurs if the Web Service URL is wrong.





3012



The output file, which is generated on the folder .\alg during product activation, is missing or has a wrong XML format - for more details view the log file. Check if you have spaces or special characters in the project name.



3013





This error indicates, that the Automatic License Generator, which is used to create Activation Keys as a response to the Transaction, can not create Activation Keys. Most often a project definition is missing or wrong on the Activation Server.



If you use a date, make sure that the date format matches the settings of the server operating system - e.g. if you have an US operating system, the date format in the XML file must match this format (e.g. 01/30/2008 - wrong format would be 30.01.2008).



Also, if the ProductID and ModuleID in the config file do not match with the ID you use in the command for the product activation, this could generate the error.



If this error occurs in combination with error 9 (see log file), then check necessary rights for ASP Service. Especially make sure that all subfolders and files have the necessary rights.



If the error occurs in combination with the message: The project-configuration file xy.xml could not be loaded then the necessary rights for ASP Service for the files in the sub folder \alg are missing. Especially make sure that all files with the extension .XML have the rights. The rights settings could have been changed if you have replaced the files.



To get the detail error, login into the Web Administration Interface, select menu Tools, Download Logfile. Search in the logfile for this error.



Upload the correct project definition

Select menu Tools, Restart Webservice









3014



Time difference between server and client does not match.



Error 3014 tells you that a request (e.g. product Transaction) or an answer between a Licence/All-In-One Protector client and the Web Activation Service (WAS) failed due to an invalid ticket. A ticket ensures that a request can not be faked by simply replaying it. That is because the ticket may have expired. As default a ticket stays valid for 24 hours.

If your user does not have the correct time set on his PC, the error 3014 may also occur. You can react as follows:



tell the user to correct the local time setting on his client

increase the validity of all tickets.  Change in the Product Configuration page the value: Maximum time difference between server / customer PC in minutes. The default value is 1440 which is 24 hours.



Notice: The greater the value is set, the weaker is your protection against replay attacks.

Notice: Make sure that your Activation Server  has also set the correct time. We recommend using the network time protocol NTP to ensure that the time of the server is set correctly. Consult the OS's documentation how to turn this on.



In case a download or upload of a license file is done, the error could also indicate that the length of the encryption code exceeds 40 characters.









3015



Serial Number / ID / Activation Key does not exist on the Activation Server



The project is configured in the way, that a Serial Number / ID / Activation Key must be added on the Activation Server before it can be used (see: Accept only uploaded Serial Numbers / IDs). When a product activation is done with a Serial Number / ID / Activation Key, which is not stored in the database, error 3015 is generated.



Solution

Add a key on the Activation Server

Only create Serial Numbers using the Activation Server and not the Licence Protector Generator









3018



The license was locked.



Error 3014 tells you that a request (e.g. product Transaction) or an answer between a Licence/All-In-One Protector client and the Web Activation Service (WAS) failed due to an invalid ticket. A ticket ensures that a request can not be faked by simply replaying it. That is because the ticket may have expired. As default a ticket stays valid for 24 hours.

If your user does not have the correct time set on his PC, the error 3014 may also occur. You can react as follows:



tell the user to correct the local time setting on his client

increase the validity of all tickets.  Change in the Product Configuration page the value: Maximum time difference between server / customer PC in minutes. The default value is 1440 which is 24 hours.



Notice: The greater the value is set, the weaker is your protection against replay attacks.

Notice: Make sure that your Activation Server  has also set the correct time. We recommend using the network time protocol NTP to ensure that the time of the server is set correctly. Consult the OS's documentation how to turn this on.



In case a download or upload of a license file is done, the error could also indicate that the length of the encryption code exceeds 40 characters.







3030

Deactivation not possible. This error typically occurs when the product was already deactivated and you try to deactivate it again.



Solution: Reactivate the product



Another reason for the error is that you are using a Licence Protector version 4.x and an Activation Server version below 4.1. Update to 4.1 or higher.





3040

A license file download is not possible because the name of the license file in combination with the used ID does not exist or the security code is wrong or tge length of the encryption code exceeds 40 characters. See DownloadLic



3050

A web service call is made from an IP-address, which was not added in the white list within the security settings





3090

There is a problem with your license. If you are a hosting customer contact support@mirage-systems.de. If you run your own server send us the log file and the license file (folder ALG, lpwas.lic).







       Reading projects failed with: load config failed



Configuration file licprotectorws.config or a file in the folder \pconfig could not be read



The XML format is wrong. Use an XML editor to edit the file and check all configuration settings



If you use a date, make sure that the date format matches the settings of the server operating system - e.g. if you have an US operating system, the date format in the XML file must match this format (e.g. 01/30/2008 - wrong format would be 30.01.2008).







3998



This error indicates too many open connections for the SQL-Server. Reboot the SQL Server.  Another reason for the error is that you are using a Licence Protector version 4.x and an Activation Server version below 4.1. Update to 4.1 or higher.



4101



The unique ID / Serial Number is missing for a license file upload.





The command UploadLic needs a unique ID / Serial Number.







See also
List of Return / Error Codes of the DLL
