To install and activate the call center adapter the following steps are necessary.



1. System Requirements regarding Salesforce



To use the Call Center Adapter, the Professional, Enterprise, Developer or Unlimited Edition is required. In the Professional Edition and also in a trial version of salesforce, the API access is by default turned off.



Note: The API is not required if you install ESI CTI Connector for Salesforce version 3.0.5 (released 2/2012). Contact support@esi-estech.com to get this update.



If you are using the Team Edition, contact support@esi-estech.com for an alternative solution.



System Requirements regarding PBX and operating system



Telephone System

To communicate with a phone system, either a CTI server (Third Party Solution) or the connection of the phone set to the PC (First Party Solution) is supported. For both systems a TAPI driver 2.x (also referred to as TSP) is mandatory. See details for TAPI - Where do I find the TAPI driver?



If you are using a modem, we strongly recommend switching to a phone set connected to the PC (via USB/serial), because the TAPI drivers of modems often do offer only basic functions or do not function at all.



ISDN phones without a PBX are available with an inbuilt TAPI driver.



VOIP systems like Cisco Call Manager, Avaya, Swyx or Innovaphone normally have a TAPI driver included.



Some SIP phones offer TAPI support, e.g.  Global IP Telecommunications Ltd (Ninja) www.globalipphones.com



Please check firstly with your phone vendor about which solution meets your requirements and how you can install and configure the TAPI driver. You can contact support@esi-estech.com if you do have the TAPI driver installed and ESI CTI Connector for Salesforce has problems with making an outgoing call or receiving incoming calls.

Operating System

Windows XP to Windows 7 (32bit and 64 bit) is supported. Every Windows System (especially XP) needs the latest service pack.



Some TAPI drivers do not work on 64bit operating systems. You can use a virtual machine with 32bit operating system. An example, how this is working is explained for MAC OS X. For Windows Vista or Windows 7 64bit, the same virtual machines can be used.





Salesforce

The Salesforce Professional, Enterprise, Unlimited or Developer Edition is required for the call center functionality. If you are using the Team Edition, contact support@esi-estech.com for an alternative solution.







See also

Configure the TAPI driver within ESI CTI Connector for Salesforce
Where do I find the TAPI driver?



2. Download the adapter configuration file

Download the file adapter.xml (right mouse click, save target as) and save it on your hard disk.



3. Add the configuration file to salesforce

Select: Setup > AppSetup > Customize > Call Center > Call Centers

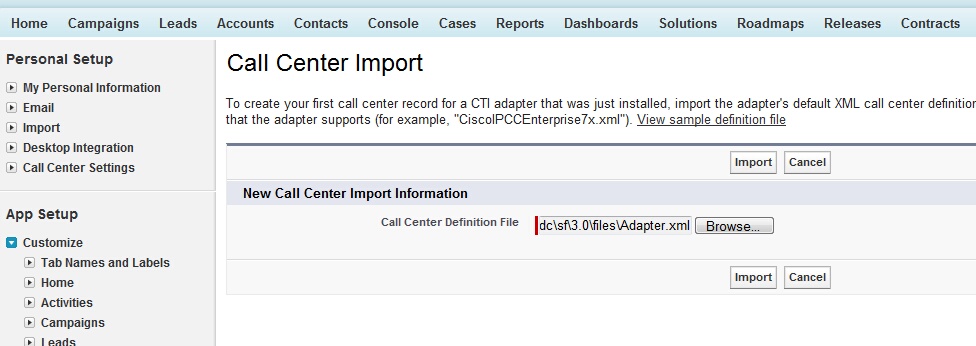

Click on the button: Import an select the file adapter.xml on your local hard disk



Browser for adapter.xml





CTI Data Connector - Call Center Adapter will be added to the call center list



call center list





4. Configure the call center adapter

Click on the call center adapter.



Note

If you make any changes of the configuration settings you have to logout in salesforce, right click on the blue CTI Data Connector icon and select: Reload Salesforce Configuration

Dialing Options



The dialing options configuration depends on the PBX and on the country your are located.

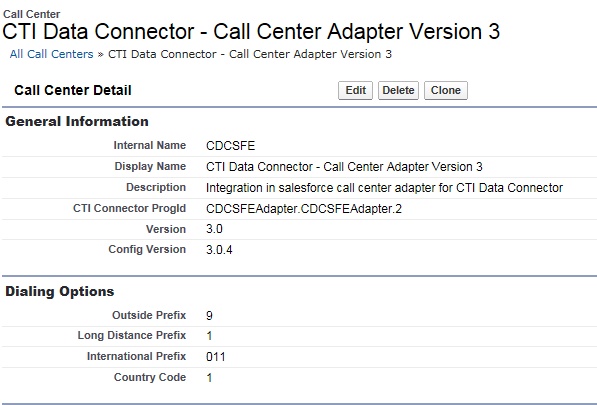

Configure call center for USA

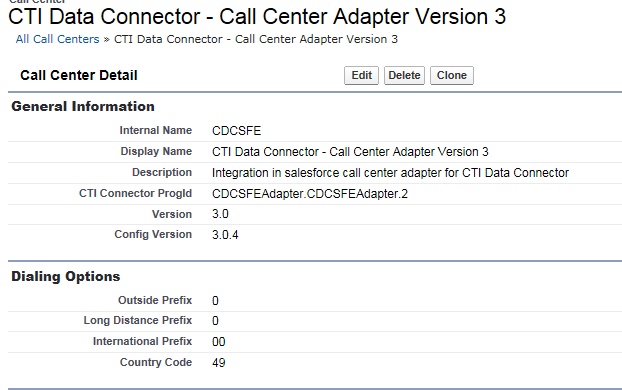

Configure call center for Europe or other countries



Outside Prefix - (number to access an outside line) - e.g. in US   91 407-398-6913 or in Europe it is often 0 031976354

Long Distance Prefix - Carrier Code to make a long distance call - e.g in US 1 407-398-6913, in Europe it is often 0 e.g. 031976354

International Prefix - Carrier Code to make an international call - e.g. in US 011497525529339 to make a call to Germany, in Europe it is often 00 e.g. 00497525529339

Country Code - Country code of your country - e.g US is 1, Germany 49. Click here for a list of all country codes





You have to use an own adapter for each country where you have call center users.

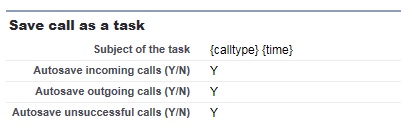

Save call as a task

Each call (incoming and outgoing) can be automatically saved as a task / activity including the call duration and a phone note.



Subject of the task - configure the subject line. Either use a text like CALL or one of the following variables



{calltype} - inserts either Incoming Call or Outgoing Call

{time} - inserts the time

{date} - inserts the current date



Autosave incoming calls: Y = Yes, N = No. Define if an incoming call should be automatically saved.  If you type in a phone note the call is always saved

Autosave outgoing calls: Y = Yes, N = No. Define if an outgoing call should be automatically saved.  If you type in a phone note the call is always saved

Autosave unsuccessful calls: Y = Yes, N = No . Define if an unsuccessful call = call duration with 0 seconds should be stored. If you type in a phone note the call is always saved

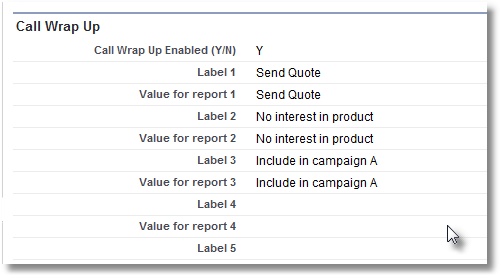

Call-Wrap-Up



To rate a phone call, you can activate the Call Wrap Up feature, which  is displayed at the end of the phone call in the SoftPhone.



The options, which are available to rate a phone call, can be defined with Label 1 to 10.



This is how it will appear on the softphone.



The selected item is saved with the note as an activity using the text, which is defined as: value for report. You can either use the same text for the report as the label or use another value.



Example:

Label: Send Quote - Value for Report: Send Quote. The text Send Quote is saved for the report.

Label: Send Quote - Value for Report: CODE-SQ. The text CODE-SQ is saved for the report.



A different value for the report e.g. makes sense, if you configure adapters in different languages but you want to have the same result text in the report.



See also: Reports



If you want to update fields depending on a phone call, create a workflow within salesforce and use the 3 call specific fields (Call Type, Call Result, Call Duration) described in step 6 to trigger the workflow.



If you want to have different options depending on user groups (e.g. sales and support or you have locations in different countries) you can install multiple Call Center Adapters.

5. Add users to the call center

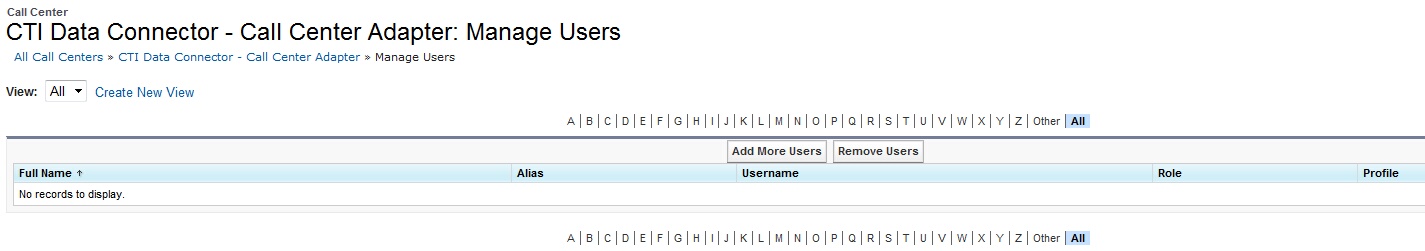

Now click on the button: Manage Call Center Users



add call center users



Add the users who should use ESI CTI Connector for Salesforce



6. Configure Softphone Layout



General Settings

The salesforce administrator can configure the user interface of the SoftPhone with the menu option: Softphone-Layouts. It allows you e.g. to define which fields should appear on the SoftPhone or general settings for the display of the call.The settings are valid for all users.



Not all functions, which can be configured here, are supported by ESI CTI Connector for Salesforce.



User specific settings

Each user can configure Personal settings: Setup > Personal Setup > Call Center Settings > My Softphone Settings

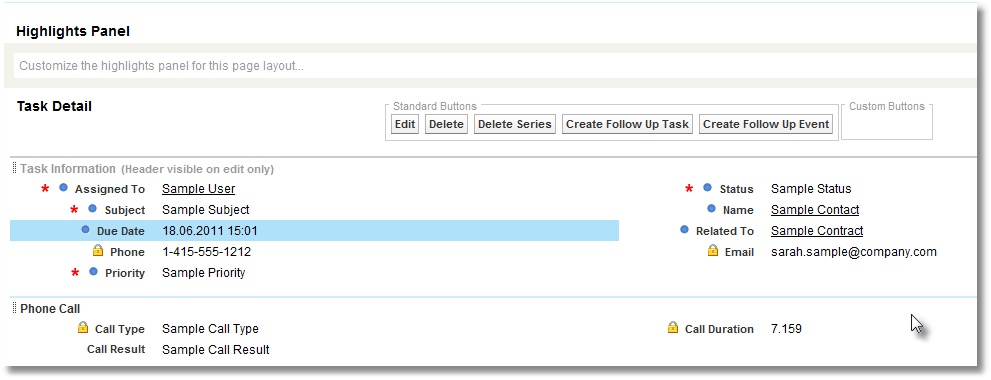

7. Configure Task Page layout

All phone calls are saved as a task. To make some special phone fields like call duration accessible for the user, they can be added to the task page layout.

Select: Setup > Customize > Activities > Task Page Layouts.



Add the fields:



Call Type

Call Result

Call Duration









Troubleshooting



See: Error - Call Center Adapter



For more information about the salesforce call center adapter search in the salesforce online help using the search term: call center adapter overview



The integration in salesforce requires one of the following salesforce editions: Professional, Enterprise, Unlimited oder Developer Edition.
