An SMS can be sent out automatically using a workflow e.g., in the process builder.



To do that, you need to specify parameters like a subject line or SMS text.



Required parameters to invoke Apex



•Mobile Phone number

•Contact or lead or account relationship, e.g. direct ID

•Subject line (option)

•SMS text (mandatory)

•Call result (option) - either complete name or API name

•Call result group (option) -  either complete name or API name



If no mobile phone number is specified, a contact or lead or account relationship is required. If both are specified, the mobile number has priority.



A task is created depending on the configuration settings and considering the record type. If the subject line is empty, the SMS subject line from the configuration is used.





Steps to send SMS via Process builder



Step1

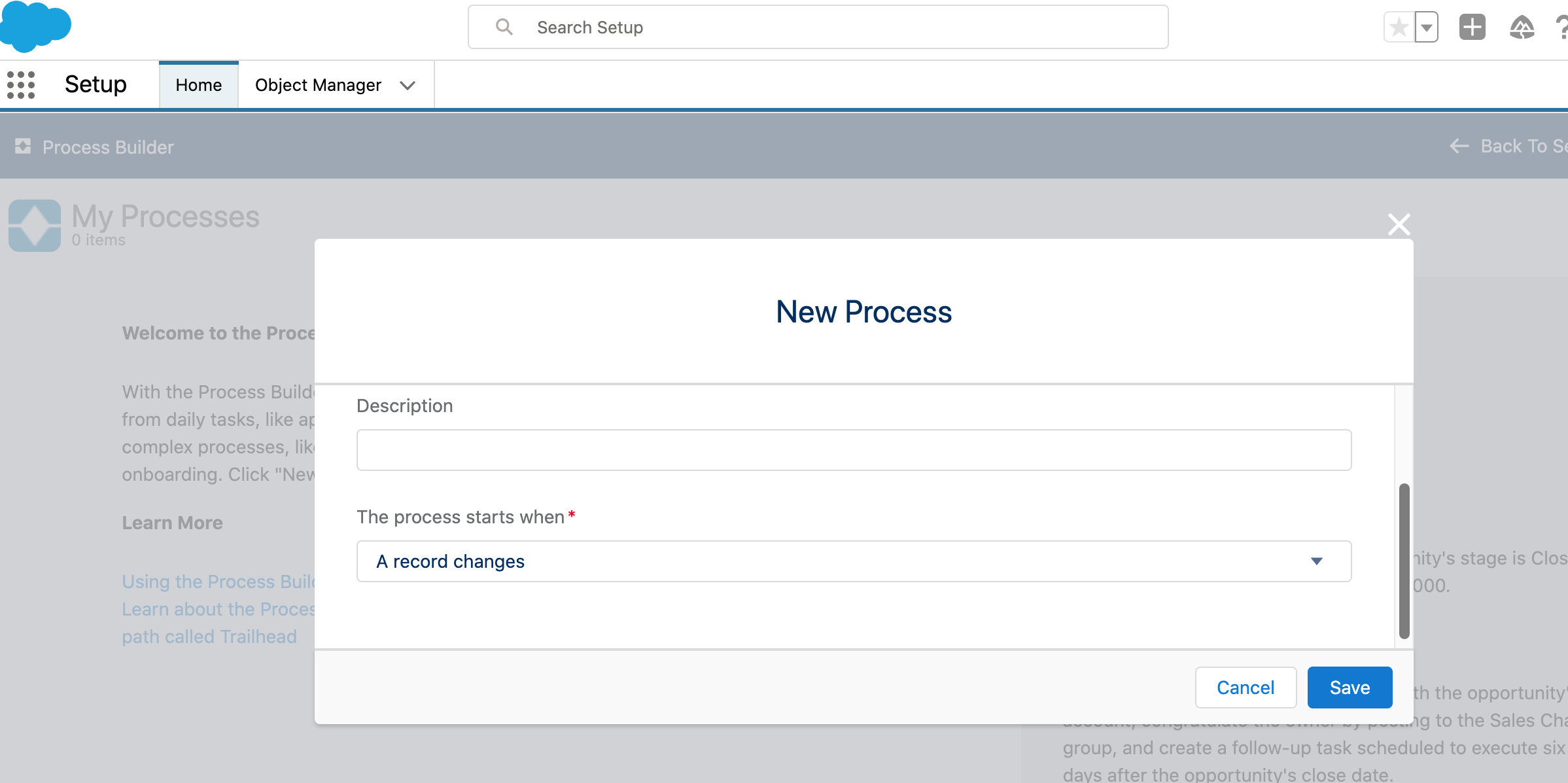

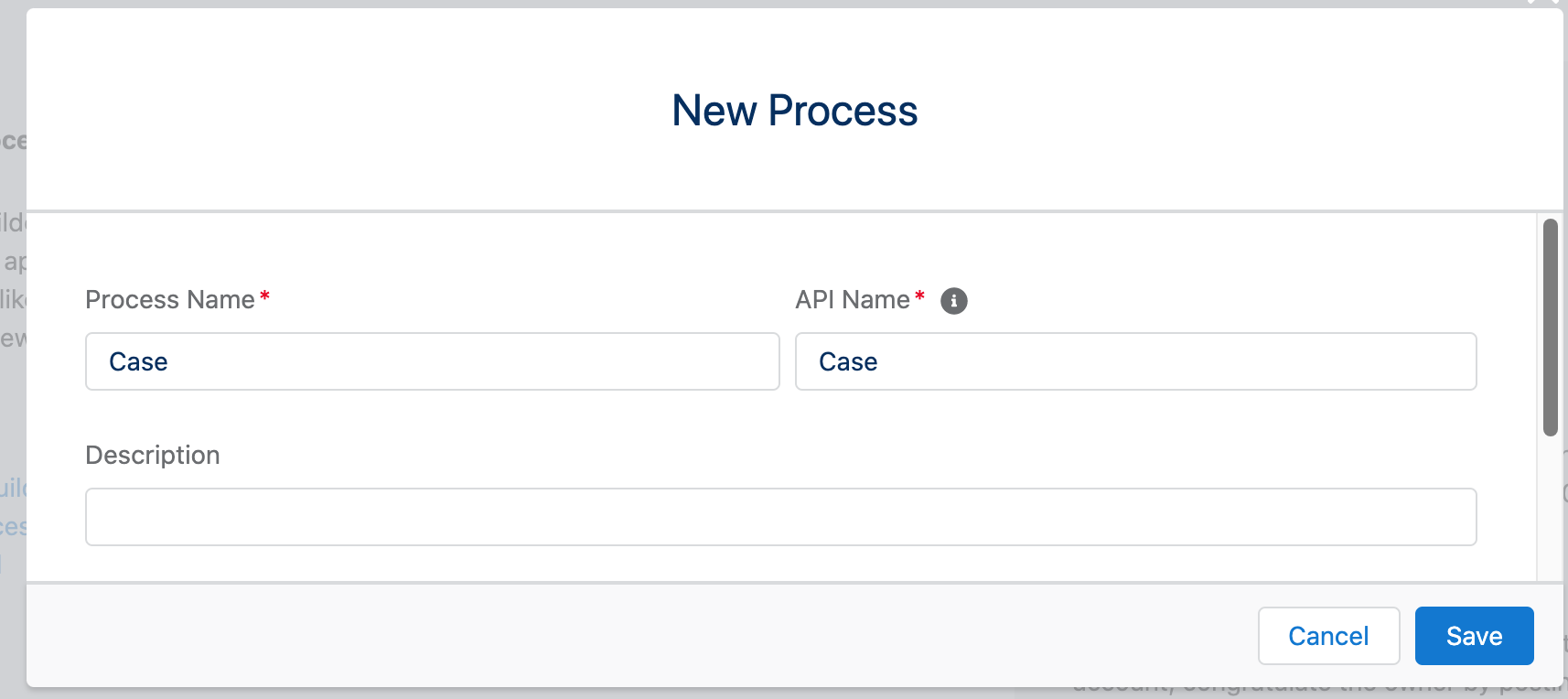

Go to Salesforce Setup-> (Quick search)-Process Builder ->Click on “New“ to create new process.





Step2

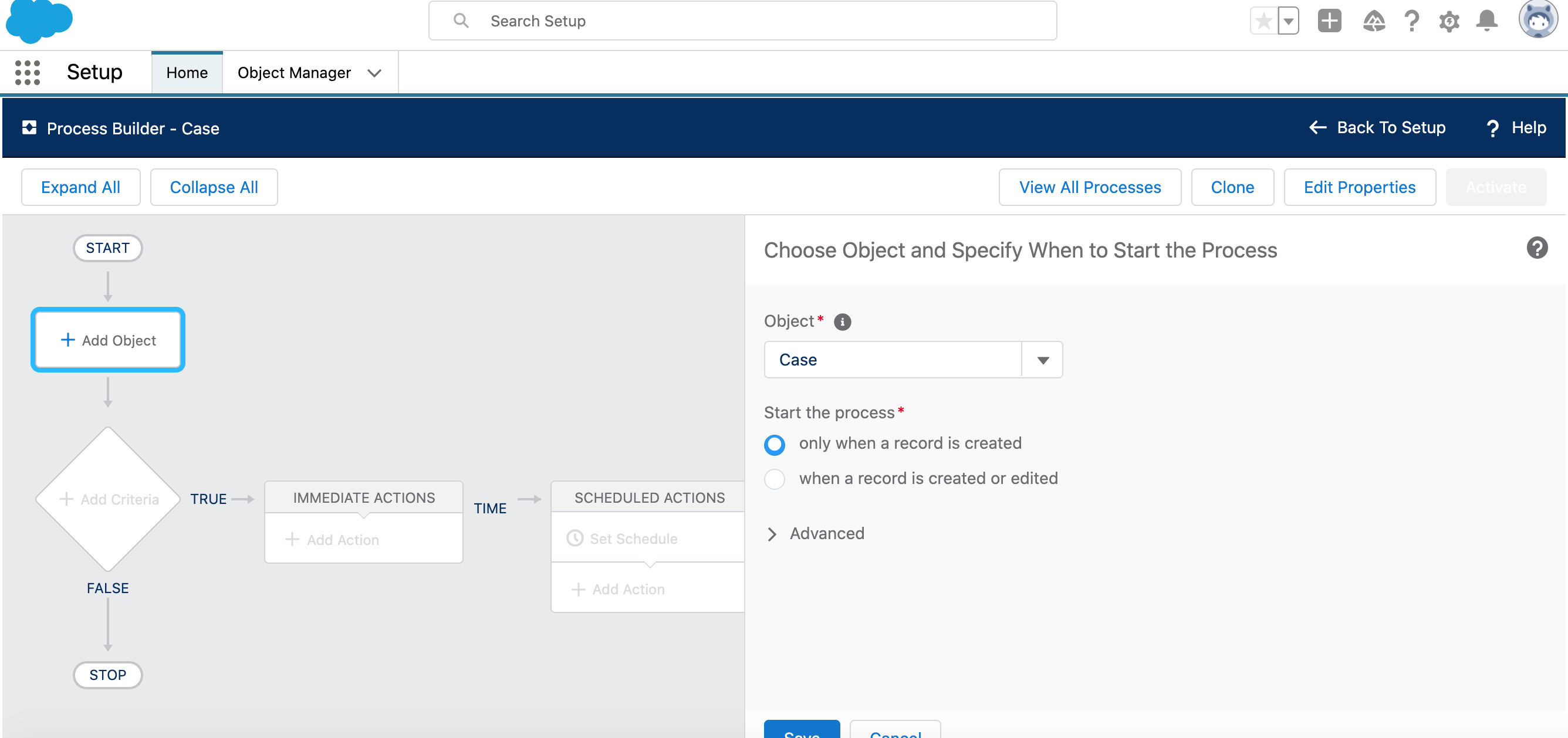

Click to add an object for that process is created. Example:  Case. Also select when record is created as we want to send the SMS when case is created.





Step3

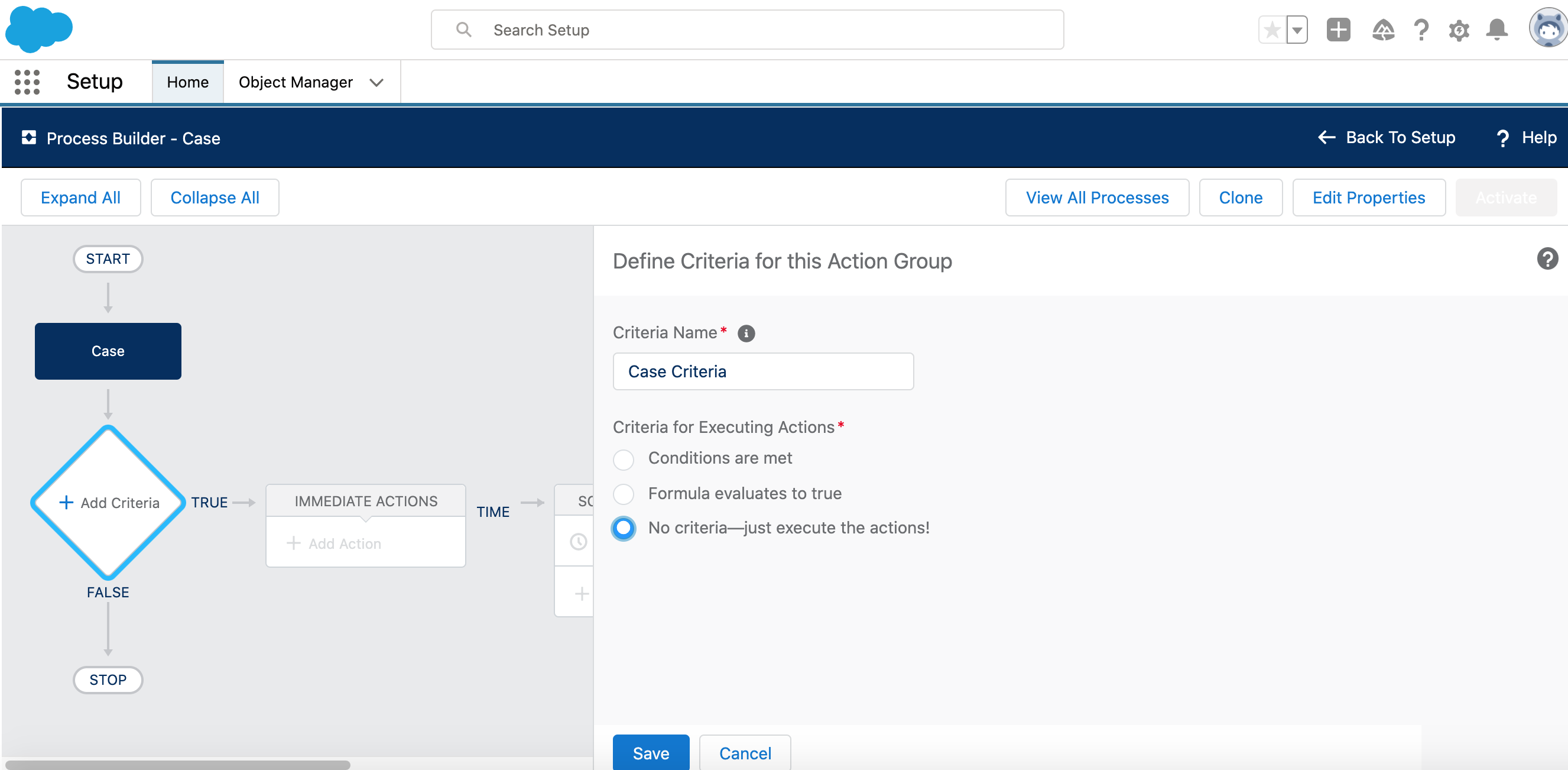

Define case criteria.





Step4

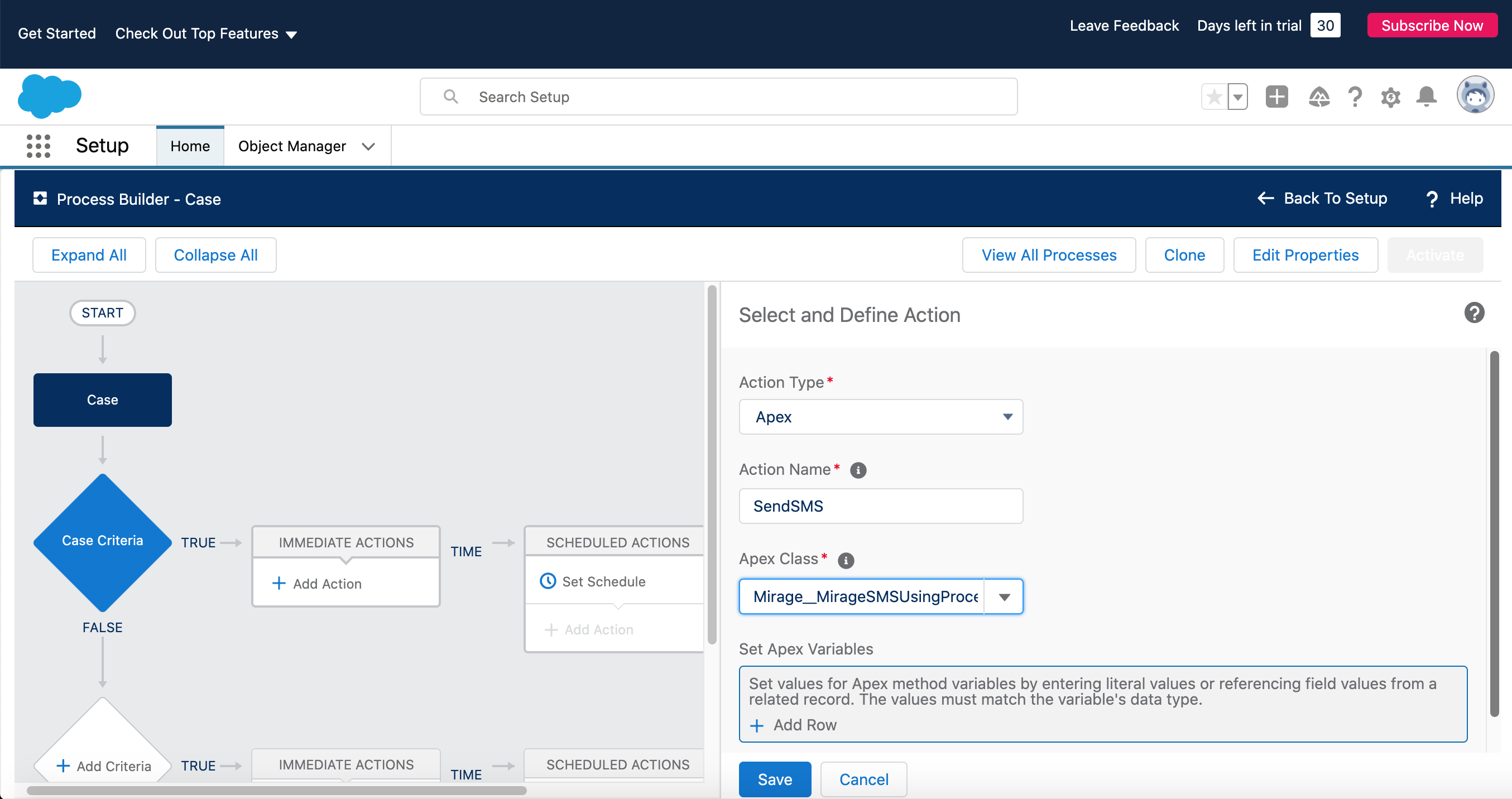

Add action for that criteria, select Apex and the apex class Mirage__MirageSMSUsingProcess that we are calling.





Step5

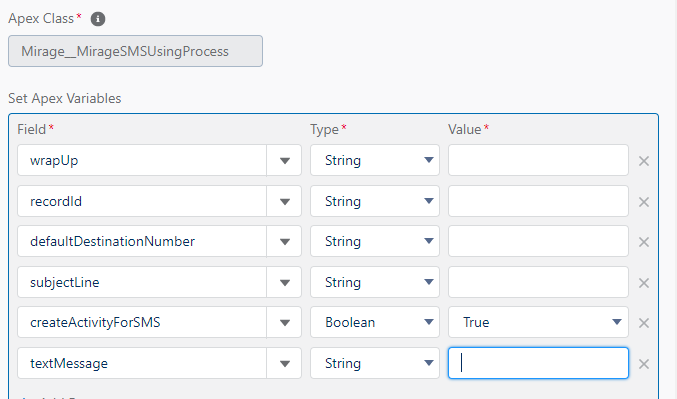

Now set values for the Apex method variables.





Parameters used to pass values from process are -



•recordId

•

Ex- ContactID(The SMS will go to that object's mobile number, Ex- contact mobile number )

Ex- AccountId(The SMS will go to that object's Phone number, Ex- Account phone number)

Ex- LeadID(The SMS will go to that object's mobile number, Ex- Lead mobile number )



•defaultDestinationNumber

Mobile number to which SMS will be sent



•textMessage

 Body of the message to send SMS



•subjectLine

 Subject to create activity



•wrapUp

To fill call result to activity



•createActivityForSMS

 When true, activity is created









SMS Configuration Cases

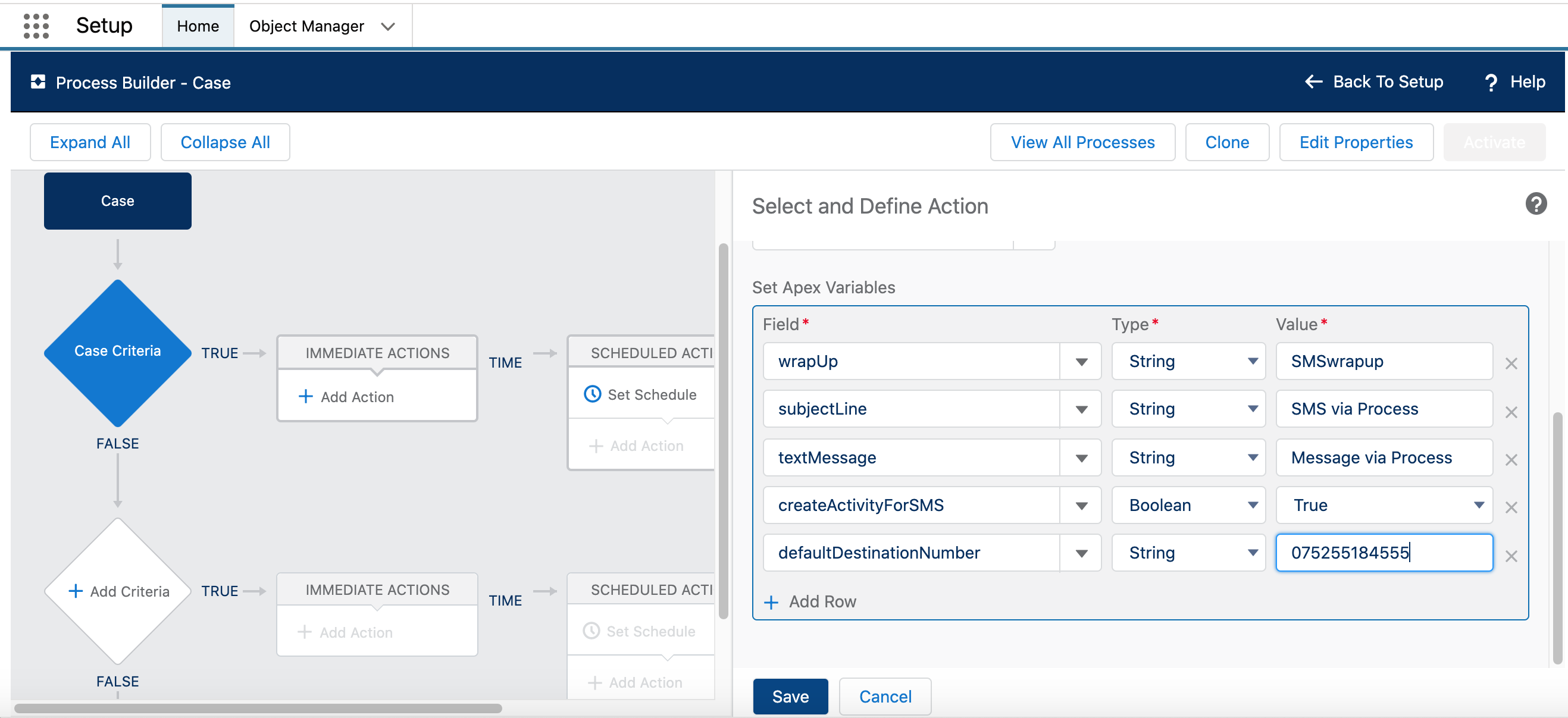

Case 1 - Default destination number is specified.



SMS will be sent to the default destination number specified in the configuration

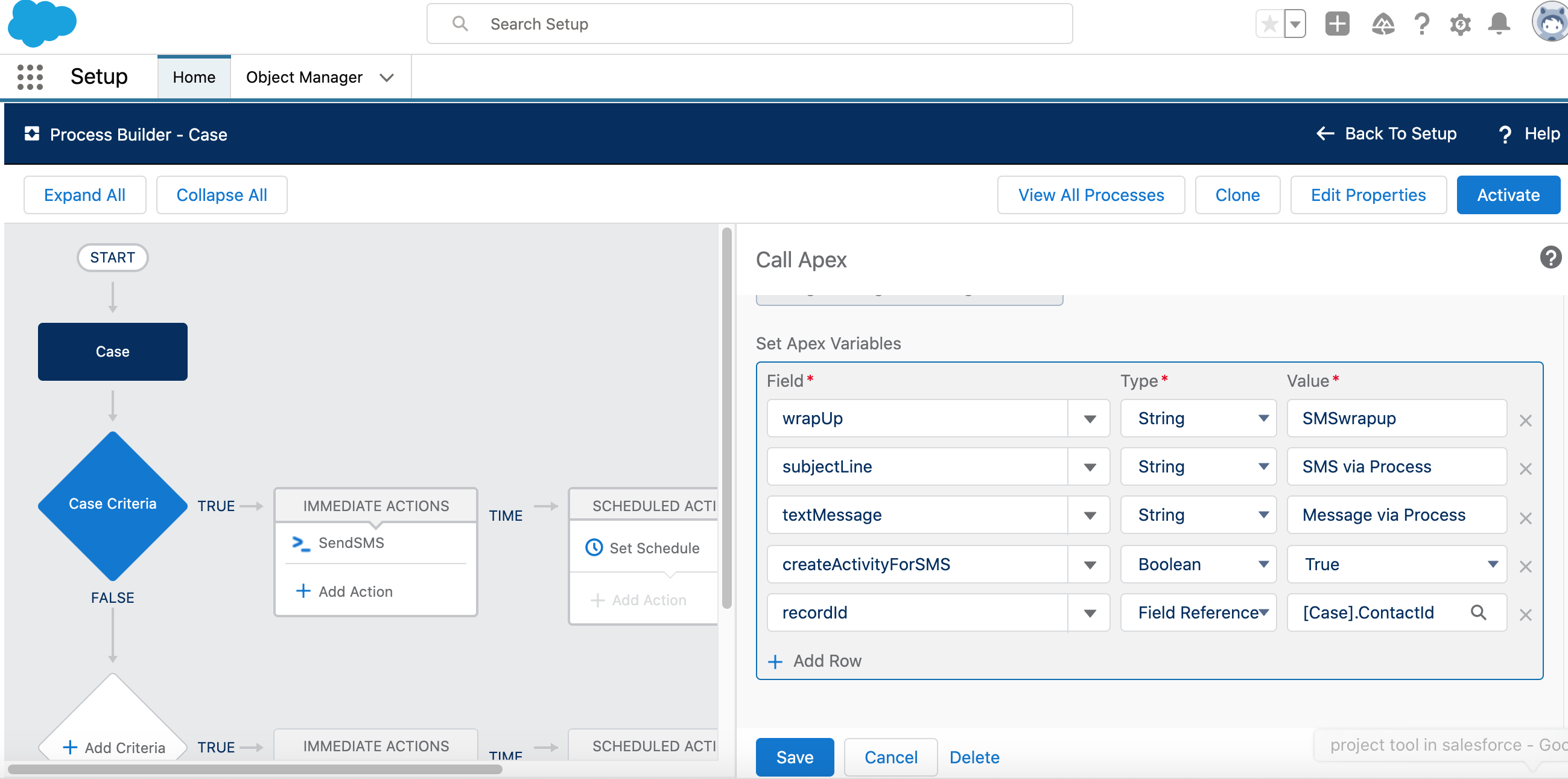

Case 2 - Record id is specified



SMS will be sent to the record (Contact/Account/Lead) mobile/phone number  specified in the configuration.



Ex- ContactId (The SMS will go to that object's mobile number, Ex- contact mobile number )

Ex- AccountId (The SMS will go to that object's Phone number, Ex- Account phone number)

Ex- LeadId (The SMS will go to that object's mobile number, Ex- Lead mobile number )

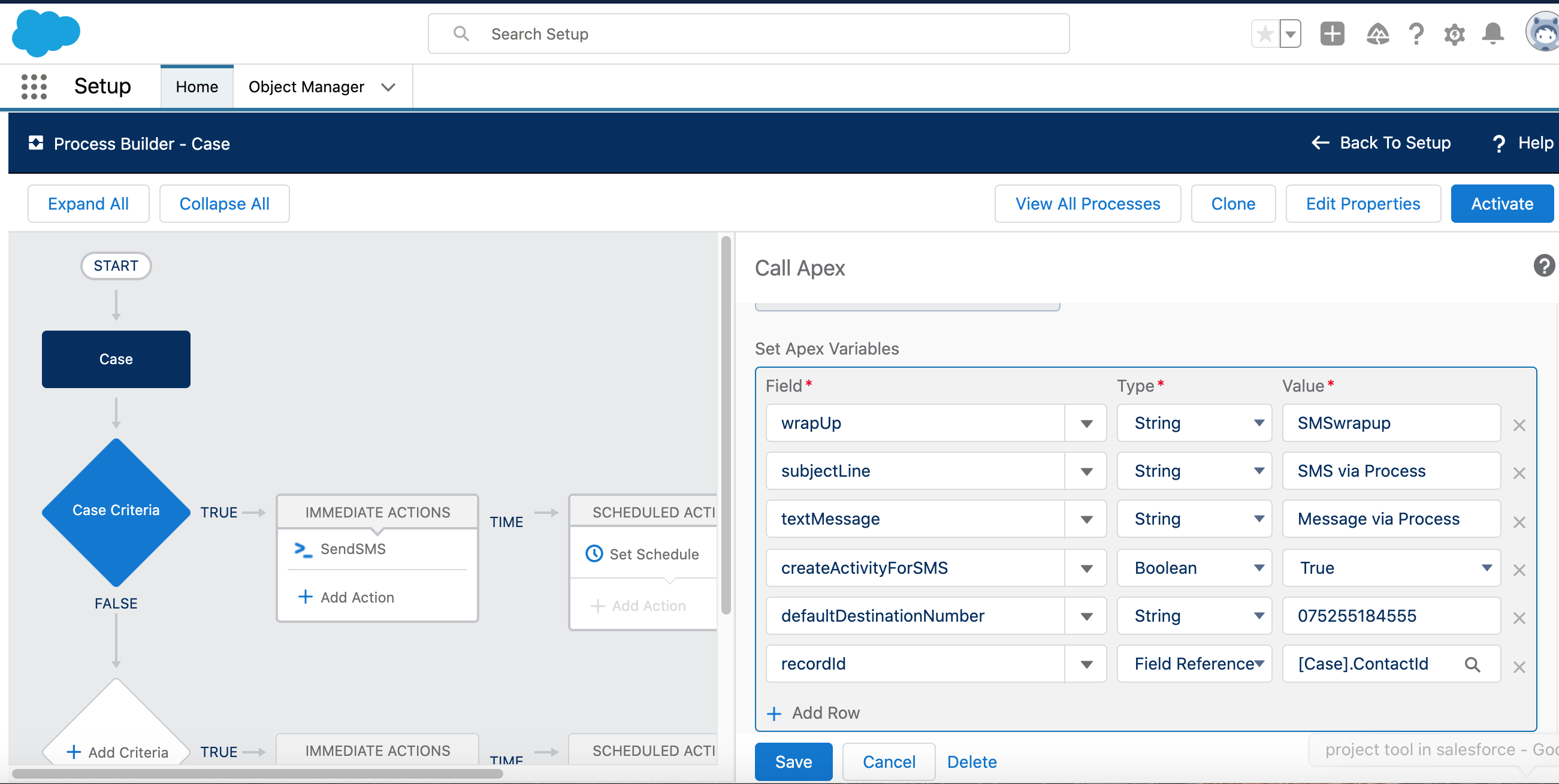

Case 3 - Default destination number and record id both are specified



SMS will be sent to the default destination number specified in the configuration. Priority is always given to the default destination number over the record id.
