Note - The screens and options for the License Generator and the Activation Server could change with the final release 3.0.



To deliver a license file via download, the following steps are necessary:



•Create a license file with the License Generator and upload this file to the Activation Server
•User gets a unique ID which he can use to download his license. This can be a customer number, invoice number or just a Serial Number
•User downloads his license using the unique ID
•When additional modules or licenses are bought, the license is manually updated on the Activation Server
•User downloads updated license information



Template demo-easygo-fileupload.xml template

You find a new template on the folder ..\Licence Protector\3.0\EasyGo.

Ensure that you have set the property - Activation Status after product activation - in your project file.



Use this template for all your tests.

Create a license and upload it

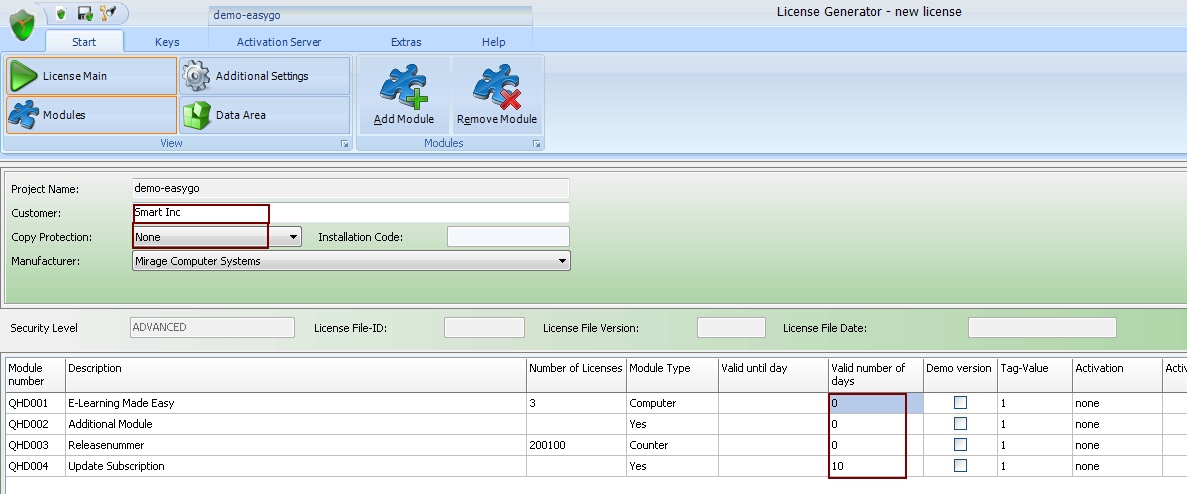

Load your license file and configure all the license options for the user.



Click here for details



Fill in the customer details. The following settings are important.



•Type in the customer name
•Copy Protection = none
•Set all modules to the values the customer has bought
•Define time limitations only if the full version should expire after x days or if a module should expire (example below - update



For the main module set

•Status of Activation to none











Save the license file on a temporary folder (this step is mandatory).

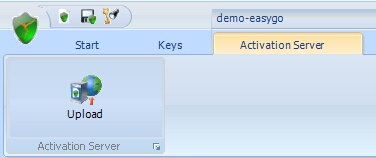

Select the TAB Activation Server and click on the Upload Server option.

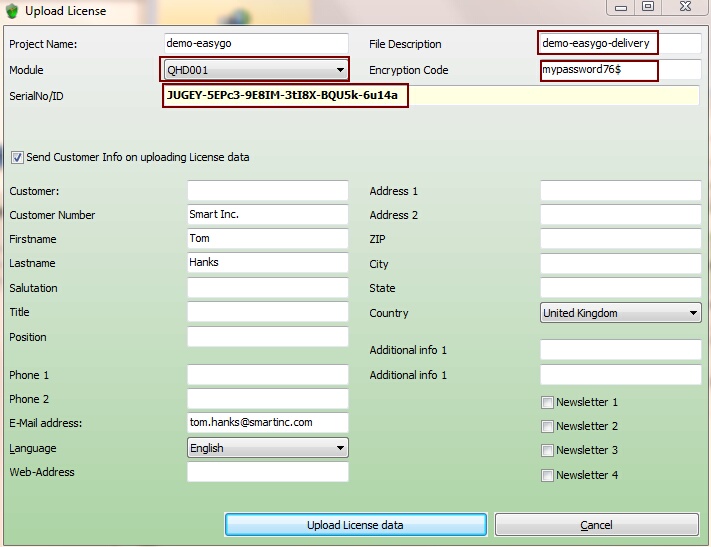

This opens a new window, where you can fill out additional license file details.



•The field Encryption Code is like a password. It ensure that nobody else with knowledge of your Activation Server structure can download a file. We strongly recommend using it
•File description is the name of the license file on the Activation Server. If this file decription is empty, the name is default.
•You have to use the module ID of the main module
•The SerialNo/ID must just be a unique ID like order number, customer number or a Serial Number. A Serial Number just ensures, that the ID is unique but has no other purpose. It does not change the license file settings, e.g. modify number of network users. The users gets this ID to identify his license on the server
•The Send Customer Info creates a record in the customer table and assigns the address to this license











User downloads the license and activates the product

The user can now download the license and activate the product, using the unique ID.



Provide a menu option: Activate license with a dialogue, where the user can type in his unique ID



•Open the license file on the local system with PrepareAdvanced
•To download the license file and activate the software use WebregisterExt. As ID use the unique ID / Serial Number the user typed in. As module ID use the module ID of your main module. Set the parameter RequestLicData to true to ensure, that the license file is downloaded. This command will always connect to the Activation Server, download the license file (if specified) and activate the product. For activation, the workflow rule defined on the Activation Server is used - see Project.config file and also the property - Activation Status after product activation - in your project file
•Save the unique ID / Serial Number in the data area using SetConfig
•Now make a backup of the license file. Use UploadLic to make a backup of the activated license file





Regular application start

When your application starts, always use the following code sequence to make the basic license check:





•SetLanguage - define language for all screens and error messages. Necessary even if you use own screens
•Open the license file with PrepareAdvanced - implement an own error handling. Error 1024 (copy protection violation) should allow to type in an Activation Key to switch copy protection type. Use SecurityLevel and PrepareForce to open the file and ShowLicViewer or an own user interface to provide the necessary information
•Test if the license was deactivated or a regular online check is necessary using CheckModule. This would only initiate an online check in case the license was locked, transferred or if a regular online check is due
•Now test the main module with ValidateEX or ValidatesYes and check for time limitation with RemainingDays an/or ExpiredOn
•If the module is expired display a screen - Evaluation Period Expired
•Provide an Own License Viewer to allow the user to view his license information,
•To display errors, you could use ShowStartErrorPage, which would also cover to view the license and apply keys. You can retrieve a language specific error message with GetErrorMessage for your own dialogs
•Use Quit at the end of the application







Add new licenses

If the user buys additional modules or more network licenses, you change the license information on the Activation Server.





Click here for details

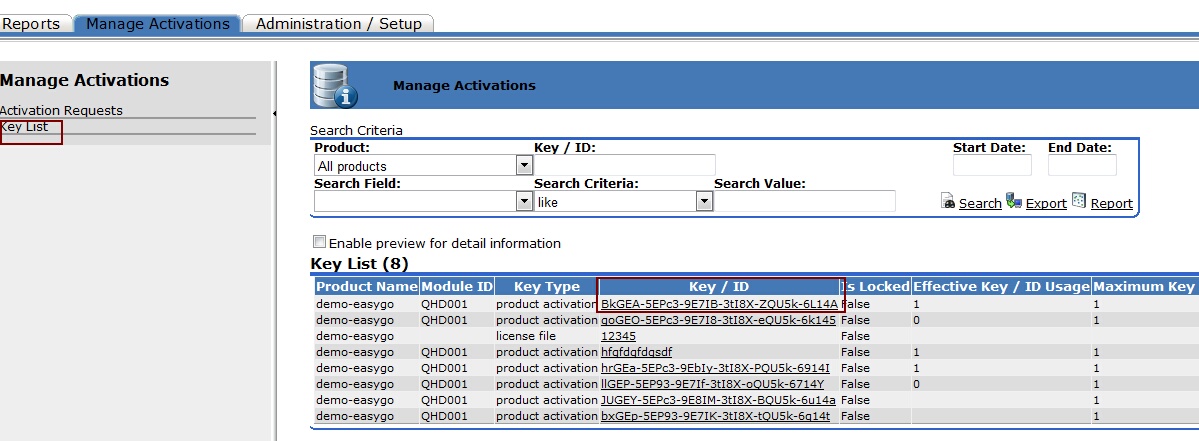

•Select TAB, Manage Activations and then Key List
•Click on the ID you uploaded





You get a new window





Now select your license file and edit the values.





User updates license information

Provide a menu option: Update my license



Use the following code sequence:



•PrepareAdvanced to open the license file
•Read the unique ID from the data area using GetConfig
•Now update the license information using CheckModule. Set ForceOnlineCheck to true (will connect to the Activation Server) and also set the parameter RequestLicData to true to ensure, that the license file is downloaded



This will download the latest license file information from the Activation Server





Transfer a license

You can transfer a complete license file to another PC.



Provide a menu option: Transfer my license



Use the following code sequence:



•PrepareAdvanced to open the license file
•Read the unique ID from the data area using GetConfig

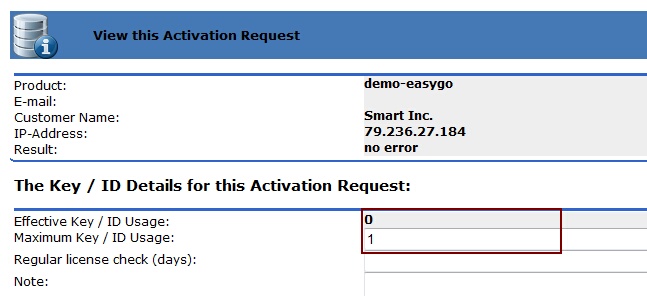

•Use DeactivateModule and the main module ID to deactivate the license on the Activation Server. Set the parameter SendLicData to true to ensure, that the latest license file is uploaded to the activation server. The field Effective Key / ID usage is now set to 0 so that the unique ID can be used on another PC









•If the user would restart the application on this PC, the command CheckModule would make an online check and reassign the license to this PC again





Use license on another PC

The user can now install the product on another PC and activate the license again. See User downloads the license and activates the product





Using multiple license files for one ID

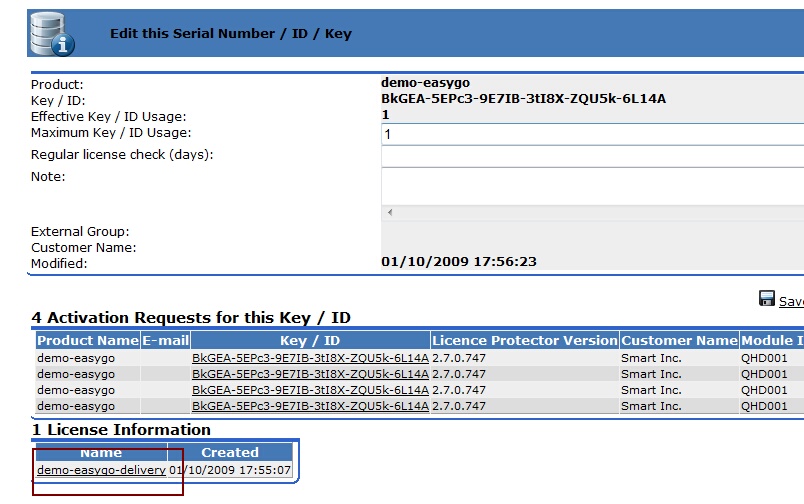

The concept supports saving multiple license files for the same unique ID. This allows you to save backups. A good idea is to use always the same names.



Example

•The original file name of the delivery - store it with the project name and extension: delivery -  e.g. demo-easygo-delivery
•A backup file - store it with the project name and extension: backup - e.g. demo-easygo-backup

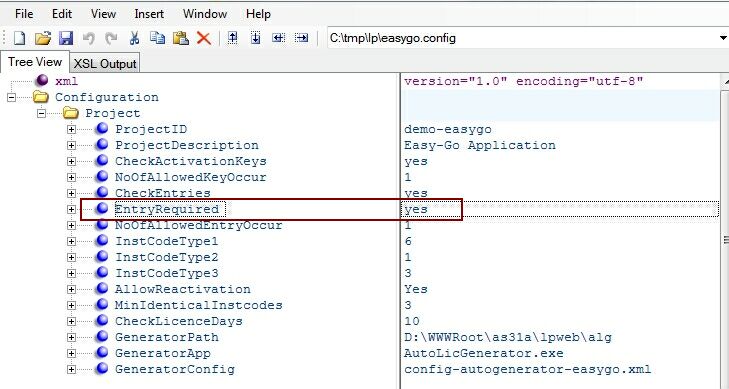

Configuration settings for the Activation Server

The project.config file needs the configuration setting, that only uploaded Keys / IDs are accepted. This ensures, that the user cannot use a fake ID to download the file.



Configuration settings - project.config file
