Test Configuration

This option allows you to perform a real E-Mail activation test to validate your settings.

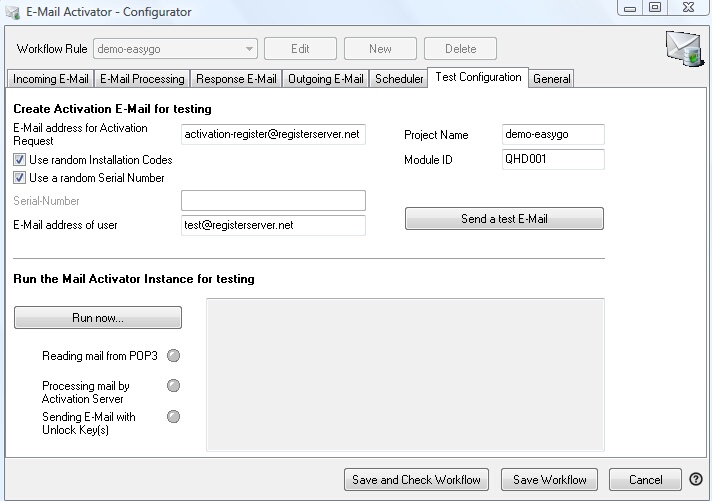

Test Configuration

Create Activation E-Mail for testing

•	E-Mail address for Activation Request. This address should match the E-Mail address you defined for incoming E-Mails.

•	Project Name. Must exactly match the Name of Multimedia Player, defined in the screen Settings within Multimedia Protector.

•	Module ID. Must exactly match the module ID you can find out, when you click on an Serial Number to display the details of an Activation Request .

•	Use random Installation Codes. Generates random Installation Codes / Hardware IDs

•	Use a random Serial Number. Generates a random Serial Number. If you uncheck this option, you can type in your own ID

•	E-Mail address of user. E-Mail address where the Unlock Key(s) is sent.

Press the button: Send a test E-Mail to send out an E-Mail for a product activation. It has the same content like the Activation E-Mail from an user.

Run the E-Mail Activation Workflow Rule to test E-Mail Activation

Now you can run a test which processes all E-Mails, stored in the mailbox for Incoming E-Mail. If you have sent a Test E-Mail, then at least one Activation would be processed. Press the button Run Now. The following workflow is processed:

•	Read incoming E-Mail

•	Send the Activation Request to the Activation Server, specified in E-Mail Processing

•	Send out an E-Mail with either an Unlock Key or an error message

•	Send out E-Mails to the addresses specified for E-Mail forwarding

You will see status messages in the text window. Check, if the configuration is working:

•	The activation must be documented in the Activation Server. Login into the Web Administration Interface and select Manage Activations. You should find an entry there

•	An E-Mail with an Unlock Key should be in the Inbox of the E-Mail address you defined above - E-Mail address for Activation Request
