Articulate Presenter (Articulate)

To secure applications created in Articulate Presenter (www.articulate.com) the following steps are necessary.

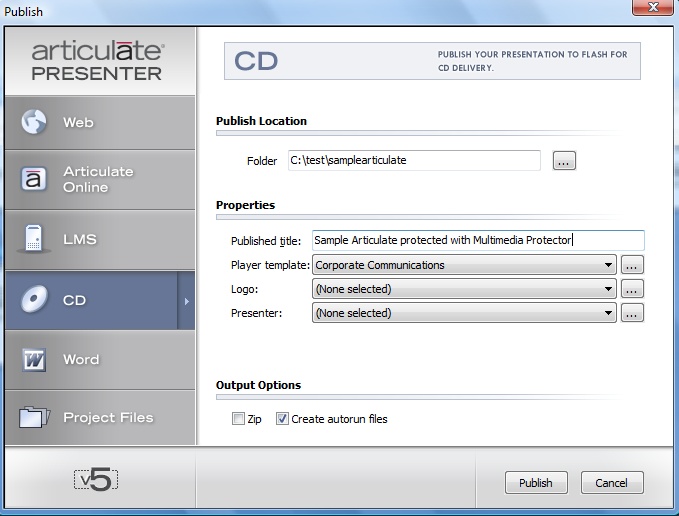

Select the option CD, check: Create Autorun files and press Publish

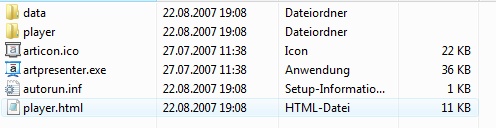

Articulate creates the following folder structure.

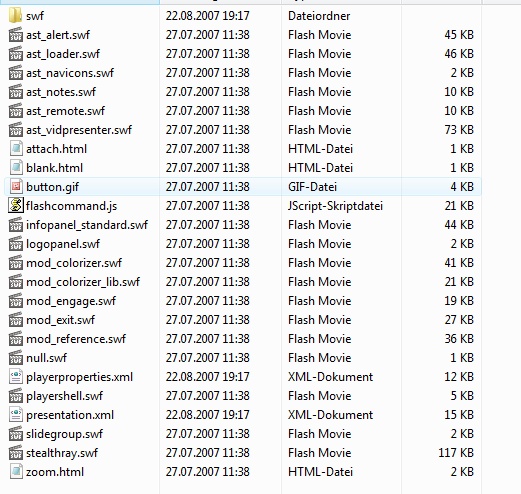

The folder data should look like this

It seems that Articulate uses some special directory functions which are not working within Multimedia Protector. You have to move folders.

Move the content of the folder player to the folder data. The folder data will have this structure now.

To run with Multimedia Protector, a special start application is needed. Copy the file startarticulate.swf and the configuration file config.xml from the Multimedia Protector installation folder ...\tools\articulate to your folder ..\data

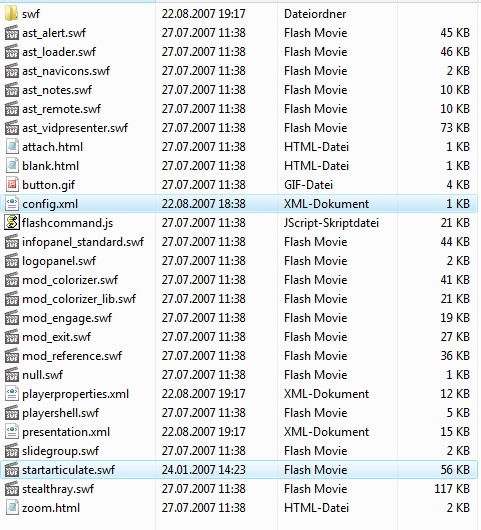

The folder \data contains now these files:

•	All original files from the folder data and the subfolder \swf

•	All files from folder \player

•	Startarticulate.exe and config.xml

Now import all the files from the project folder \data and mark startarticulate.swf as startfile using the button Define as starting file. A red icon signals the start file.

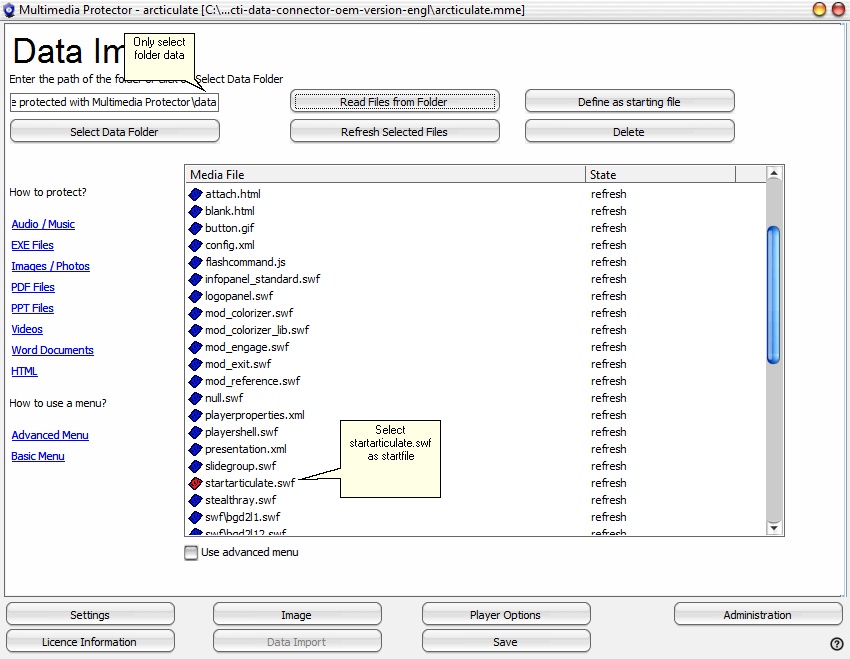

The import screen would show the following files.

If you are using additional files from an Engage project, these files will not work because they run only in a Browser based application.

If you use .flv files inside the presentation, convert the .flv files to flash - see video converter.
