Licence Protector 5

In case you deliver single user installations in a huge number to one company and online access is always available, a product activation without user interaction is possible. The workflow could also be used for standard single user installations, if always an online access is available and a trial version is not needed.



The Serial Number is already stored in the the license file. On the activation server is a definition, how often this Serial Number can be used

During the program start, the Serial Number is retrieved, sent to the activation server and the result is a product, which is instantly activated

If the company needs more licenses, just increase the number of activations on the Activation Server 6



Workflow in Detail

Create a new license file in the Generator which is time limited. Save the file.

Create a Serial Number in the Generator. It is important to save the the Serial Number in the file



Click to enlarge

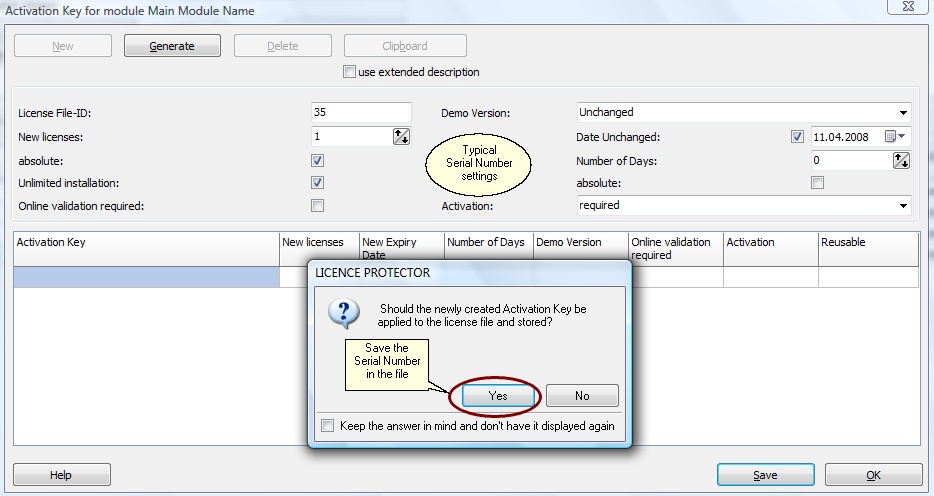

Save Serial Number in the license file





Add this Serial Number on the Activation Server and define, how often the Serial Number can be used - see Add a key on the Activation Server



Code Integration



SetLanguage - define language for all screens and error messages. Necessary even if you use own screens

Open the license file with PrepareAdvanced - implement an own error handling. Error 1024 (copy protection violation) should allow to type in an Activation Key to switch copy protection type. Use SecurityLevel and PrepareForce to open the file and ShowLicViewer or an own user interface to provide the necessary information

Now test the main module with ValidateEX or ValidatesYes

If the status Activation is required (1) then the software is not activated yet. Retrieve the activation status with GetWebActivation





Activate the product online
The Online Activation process can be implemented with a few DLL calls. The configuration files are the same as used for EasyGo - see configure a project



The Serial number would be used as the unique ID on the Activation Server.



Use the command: GetSerial



The command SetRegisterSerialNo would display this Serial Number as a default value in the activation dialogues when using the PrepareAndCheck command



The sequence for the Online Activation is as follows:



Activate the license for the main module using WebRegisterExt and use as the unique ID the Serial Number

You can turn on/off the activation dialogs with ShowWAStartPage, ShowWAProgressPage, ShowWAResultPage

By defaults all other necessary parameters are retrieved from the license file but could also be set individually

Url to Activation Server - WebServiceURL
Project name - ProjectName
Proxy Settings - LocalProxyPort, LocalProxyServer, UseLocalIEProxy, UseLocalProxy







If the status Activation is done (2) then the software is activated - a screen should be displayed only in case of an error generated during PrepareAdvanced

If the status Activation is erroneous (3)  then the activation was not successful. Try to activate again.

Provide an Own License Viewer

To display errors, you could use ShowStartErrorPage, which would also cover to view the license and apply keys. You can retrieve a language specific error message with GetErrorMessage for your own dialogs

Use Quit at the end of the application
