Main screen Customization - SetRegisterSettings **

Parameter

Type

Example

Note

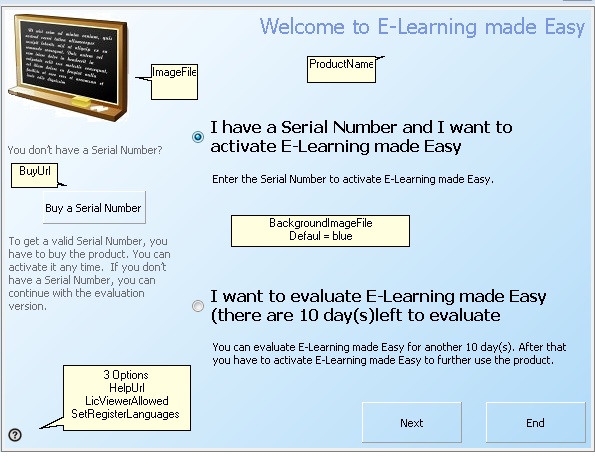

ImageFile

String

"C:\program files\myapp\mylogo.jpg"

Absolute path to the logo image  used in the EasyGo form.

Notice: The Image has to be of format JPEG. Use a size of 175x115 to get the best result. The pixel in the left upper corner is used as transparency color . Also see: Background Image

LicViewerAllowed

Boolean

True

Controls whether theLicense Viewer is accessible in the EasyGo form. The icon

appears if the link is provided. The option is: Show License Information

Notice: On the EasyGo error screen the License Viewer is always available independent of this parameter.

You can enable or disable buttons in the License Viewer.

SerialIsAK

Boolean

True

Controls whether the Serial Number is a Licence Protector Serial Number or an own ID

Manufacturer

String

My Company

Name of the manufacturer. Used in error screens

Productname

String

My Product

Name of the application which is displayed in the title bar. If value is empty the projectname of the license file is used.

RegisterOnline

Boolean

True

Controls whether online registration is allowed. The WebServiceURL in the license file is used for the activation.

RegisterBye-mail

Boolean

True

Controls whether registration by e-mail is allowed

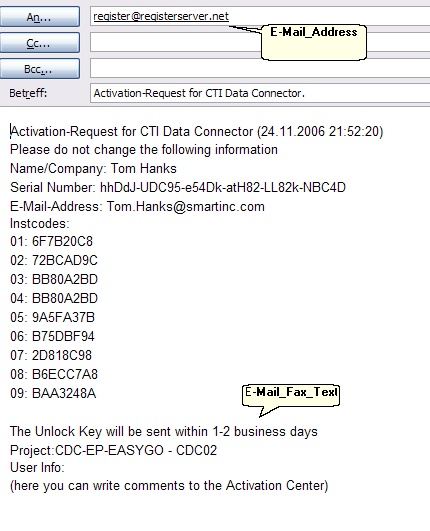

e-mail_Address

String

activate@mycompany.com

e-mail-Address to which the e-mail registration has to be sent

sEMailSubject (Note: This parameter is available from version 2.6.4 onwards)

String

Activation Request for my product

Subject line in the e-mail. If empty, a default text is used.

RegisterByFax

Boolean

False

Controls whether registration by fax is allowed

Faxnumber

String

123456789

Fax-Number to which the registration form has to be sent

RegisterByPhone

Boolean

False

Controls whether registration by phone is allowed

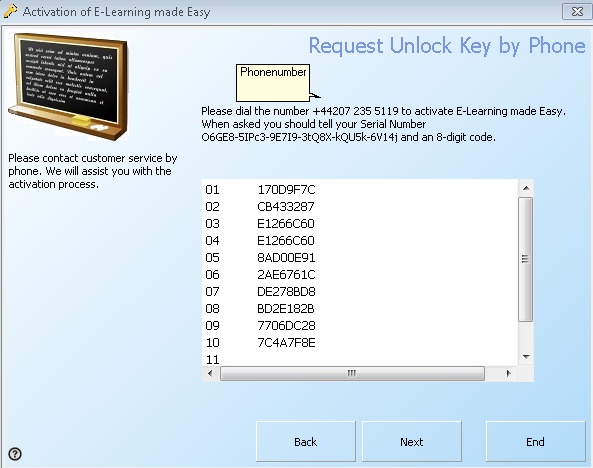

Phonenumber

String

987654321

Phone number which has to be called to receive the Unlock Key(s)

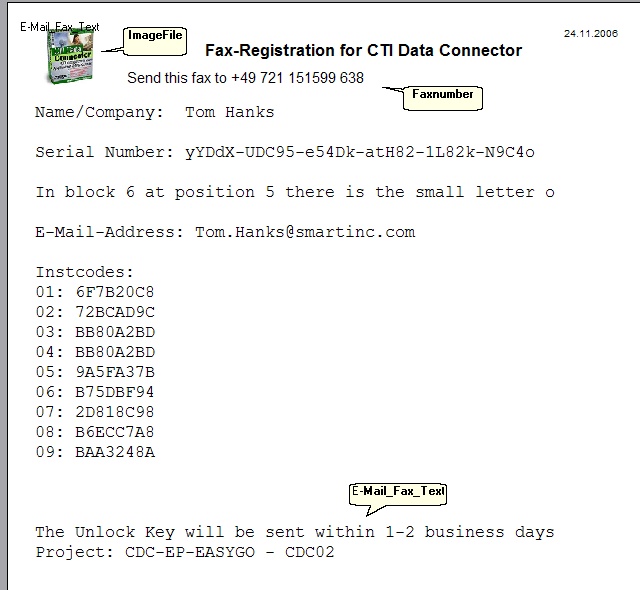

e-mail_Fax_Text

String

Additional text that appears on the registration e-mail or fax. May be empty.

DefaultMethod

Integer

0

Controls the primary registration method:

0 = Online (default)

1 = e-mail

2 = Fax

3 = Phone

BuyURL

String

http://myproduct.mycompany.com/buy.html

URL to buy the product. If empty no  BUY button is visible EasyGo form. The BUY button is only visible until the Serial Number is typed in.

Can also be a link to a file on the local hard disk, e.g. PDF order form

HelpURL

String

http://myproduct.mycompany.com/help.html

URL to provide additional help information for the registration process. The icon

appears if the link is provided. See details for default help.

BackgroundImageFile

String

"C:\program files\myapp\background.png"

Absolute path to the image for the background. Must be png format. If this image is missing the background is light blue. See details

WorkflowType

Integer

1

defines a workflow for a module. The default workflow is specified in the project template, TAG <EasyGoWorkflow> and is used, if the field here is empty (recommended)

Possible values

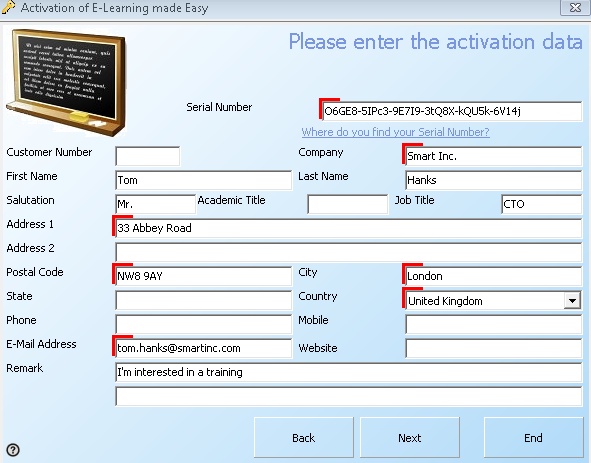

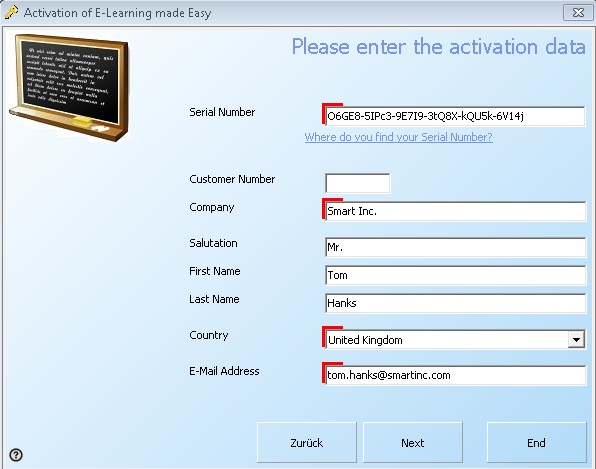

ActivationDataType

Integer

0

Defines the activation data to collect

0 = Standard

1 = Basic

2 = Full

ContactAddress

String

support@mycompany.com

contact address which is displayed in error screens - example. If this string is empty the company name from the template (TAG <Manufacturers>) is used

FullVersionIsTimeLimited

Boolean

false

True = Full Version is time limited - Details see workflow

Returncode

Type Integer

Note

0

Command was successful

4

Do not continue - a major error occurred (e.g. insufficient network license) - terminate the application

Other value

Error occurred, see list of return codes
