Enter activation data

The user first gets a screen to type in the Serial Number, name and depending on the settings for the required activation data, more personal data.

Standard Activation Data	Basic Activation Data	Full Activation Data
Newsletter

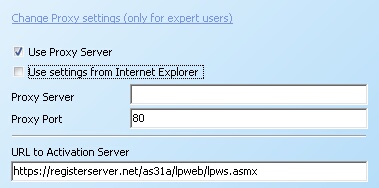

Change Proxy server settings

By default, the proxy server settings from the Internet Explorer are retrieved. The user can change the settings.

Online Activation - Change Proxy Server

Online Activation in process

The user sees an animation while the data are sent to the Activation Server.

The dialogs could be deactivated either with the settings <ShowWAStartPage>, <ShowWAProgressPage>, <ShowWAResultpage> in the project template or with the commands ShowWAStartPage, ShowWAProgressPage, ShowWAResultPage in the source code.

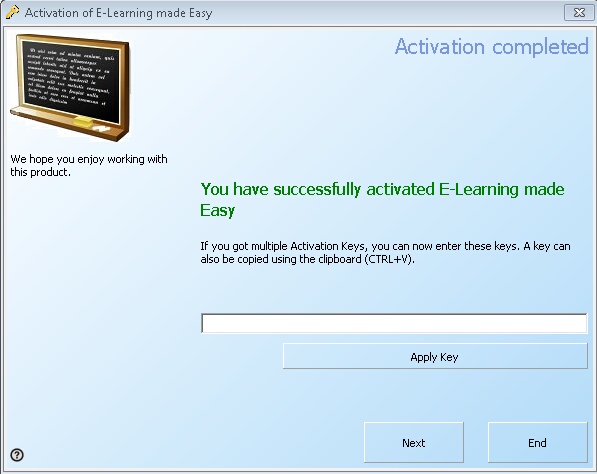

Activation successful

The screen activation completed is displayed.

Online Activation - completec

This activation option is defined with the parameter RegisterOnline. The WebServiceURL has to be defined in the project template.

The Online Activation uses an http request on Port 80 to communicate with the Activation Server. A router with a standard firewall (IP-Filter) will not detect the difference to a Browser request and let the activation pass. A local personal firewall like McAfee or Norton will pop-up and ask, if the request should be permitted. Only a 'real' application firewall will block the request and an administrator has to open port 80.

Proxy settings are retrieved from the Browser but can be changed with the commands LocalProxPort, LocalProxyServer, UseLocalIIEProxy, UseLocalProxy.

Only the Licence Protector DLL can talk to the Activation Server.
