Here you can configure the databases in which CTI Data Connector Enterprise Edition will search for address information and phone numbers.  There is a Software Development Kitavailable to configure an own SQL database for caller identification.

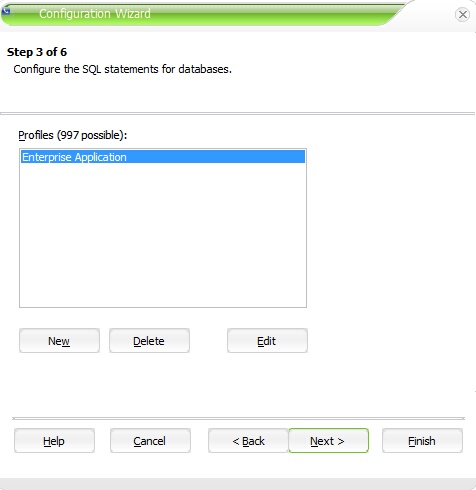

CTI Data Connector Enterprise Edition can search in multiple databases. A profile for each database is necessary.

Configuration of the database access

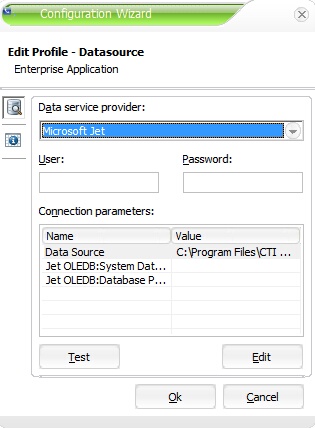

By pressing the button EDIT, a configuration screen will be opened.



Depending on the data service provider (Microsoft Jet = Access, MS-SQL, Oracle, ODBC) you have to choose the connection parameters.



Microsoft Jet - Access

Data Source: Path with the name of the access database

JET OLEDB System Database: Path with the name of the system database (if needed)

JET OLEDB Database Password: Password for the system database



ODBC DSN

DSN: ODBC name as stated in the system-DSN



Microsoft SQL Server

Data Source: Server name

Initial Catalog: Name of the database



Oracle

Data Source: Path and name of the TNSnames.ora



If the field user and password is empty, an integrated login will be done!
