Menu item: Administration / Setup - Product Upload





If a new product is available, you have to upload it to the Activation Server 5. Without uploading the product a product activation would not be possible. This option is available



After saving the product in Licence Protector or All-In-One Protector and selecting the option: Publish / Update product on the Activation Server -   the files are automatically created in pre-defined folders.



Depending on the version you are using, the files are either in the folder



Publish (product name)\config\AS

Publish (product name)\config\Web Activation Server

(product name)_ActivationServer





To upload the files 4 steps are required.

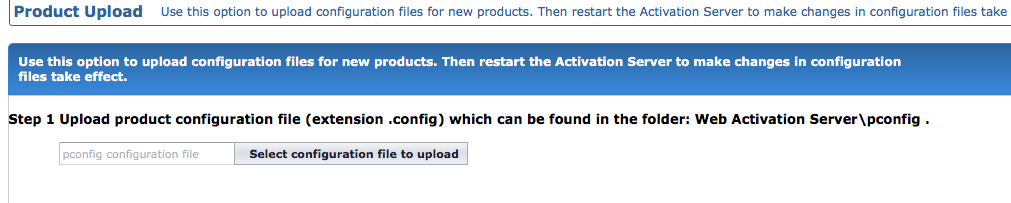

Step 1 - select the product configuration file (extension .config)





Click on the button: Select configuration file to upload



Select your product / project folder and search for one of the folders listed above. Navigate to the subfolder \pconfig





Select the file in this folder.

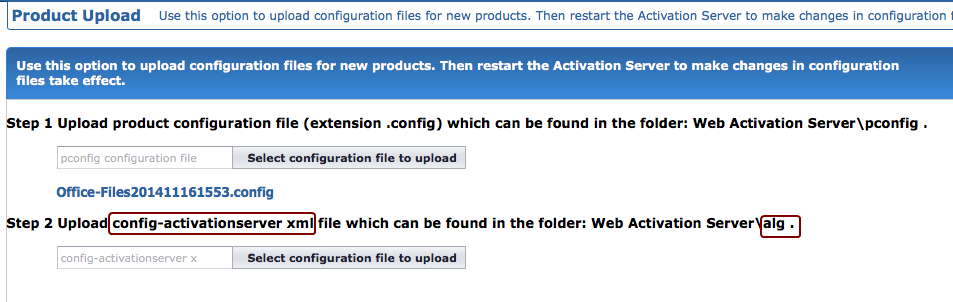

Step 2 - select the additional configuration file (extension .xml)







Click on the button: Select configuration file to upload



Navigate to the subfolder \alg



There are 2 files in this folder. Select the file which starts with config-activationserver or with ASconfig in the file name

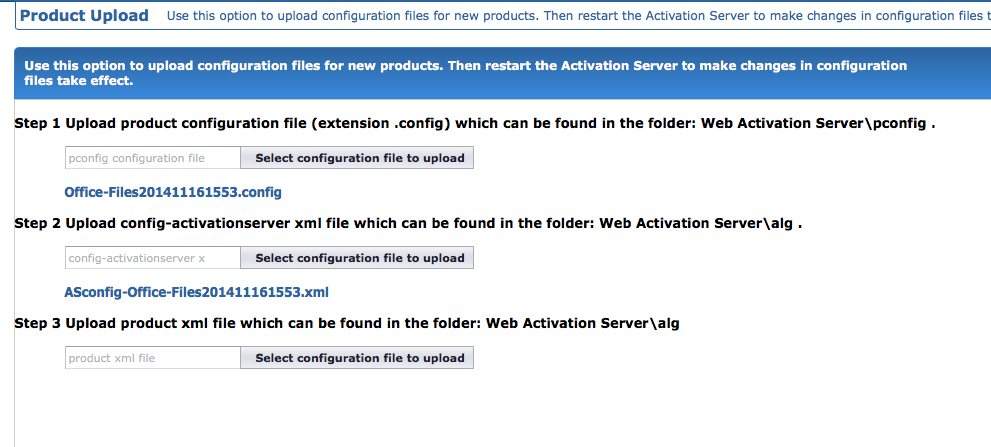

Step 3 - select the additional product file (extension .xml)



Click on the button: Select configuration file to upload



Navigate to the subfolder \alg



There are 2 files in this folder. Select the file which starts with the product name







Once the final file was uploaded proceed with step 4 and click on the button: Restart Activation Server
