Start Application - Main Screen

Scroll Prev Top Next More

Start License Generator
License Generator can be found in the program group Licence Protector 5 with the ICON .

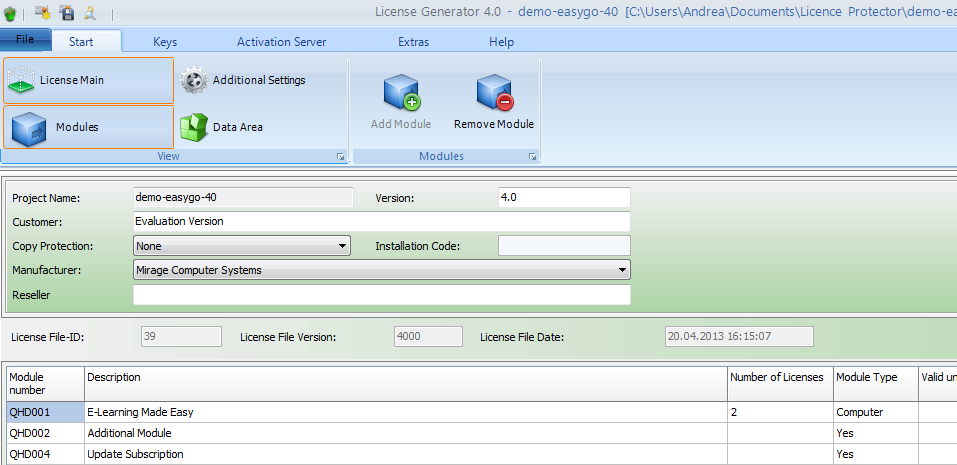

The last project file is loaded automatically and the main screen of License Generator appears.

Name of the Project File (Extension XML) and the name of the license file (Extension LIC)

Title Bar

Ribbon Toolbar

Additional information

Selected Modules

You can use shortcuts to access the menu by pressing the key ALT + Shortcut. Which key you have to press is displayed by an underlined character (press key ALT, then the character is underlined).

A orange frame indicates that a option is selected .

File Tab

This button replaces the file menu option button of earlier releases. The Licence Protector Button should only blink when you have not clicked the button to view the commands. The blinking is a "look at me/click here" feature, because many people think that the button looks like a decorative logo, rather than a button to click to see commands. If you click the Licence Protector Button one time, it should stop blinking.

	Open Project File	Opens project file. Also displays a recent project file list
	Open license File	Opens a license file. Also displays a recent license file list
	New license File	Create new license file
	Save	Saves the license file
	Save As	Saves the license file with another name
	Create a project	Create a new project
	Copy a project	Copy an existing project
	Exit	Exits License Generator

Start Tab

Click on this tab to access the main functions of the generator.

Toggle between License Main page and Additional Settings page

Toggle between Module View and Data Area View

Keys Tab

Click on this tab to access key generation functions

	Tamper Detection	Create Keys to enable or disable Tamper Detection
	Copy Protection On	Create a key to enable copy protection
	Copy Protection Off	Create a key to disable copy protection
	Serial Number	Create a Serial Number key
	License validation on / off	Enable or disable license verification
	Unlock	Create an Unlock Key
	Unlock without Copy Protection	Create an Unlock Key without copy protection
	Additional Licenses	Create a key to change license information
	Description On / Off	Turn on and off additional text description for a key. After each key an additional text description is displayed
	Analyze Key	Analyze an Activation Key and get all the settings, the Activation Key will change
	Save Key List	Save the generated Activation Keys in a file

Activation Server Tab

Configure and upload projects to the Activation Server 6

	Upload license file	Type in the project master key (password). This is required only if the project encryption needs a master key
	Settings	Configure basic settings for product activation
	Configure own server	Configure your own Activation Server 6
	Configure hosting server	Configure hosting server
	Administration	Connect to the Web Administration Interface
	Upload project configuration	Upload your project to the Activation Server 6

Extras Tab

Click on this tab to access special functions like USB protection.

	Logging	Enable or disable Logging. Select the folder for the log files.
	Language	elect a language for the License Generator. The program has to be restarted to have the changes take effect
	Confirmation prompt	In the case that some questions have been deactivated, using this function they can be switched on again
	USB Protection on	Turn on copy protection on an USB flash drive. The license file must already be on the USB flash drive
	USB Protection off	Turn off copy protection on an USB flash drive. The license file must already be on the USB flash drive
	Backup license file	Backup your license file on the Activation Server 6
	Restore license file	Restore your license file on the <%WAS%

Help Tab

Click on this tab to access multiple help options

	Online Help	Display the Online Help and Software Development Kit
	Quick Introduction Help	Display the Help and Welcome Screen during program start. This screen provides you with links to the most popular FAQs to get started and link to the Online Knowledge Base
	Updates	Checks if a new update is available and downloads it
	Licence Protector on the Web	Opens the Licence Protector Home page
	Buy Licence Protector	Order Licence Protector online and instantly get a Serial Number
	About	About Licence Protector and release information
	License Viewer	Display your license information and enter Activation Keys

Quick Access toolbar

Often used commands can be accessed through a toolbar with small icons right to the Licence Protector Button. Right now, the toolbar can not be configured and comes with predefined icons.
