CTI Data Connector

The Desk Phones can be configured in the Administration Portal



Admin Portal, Elements / Devices

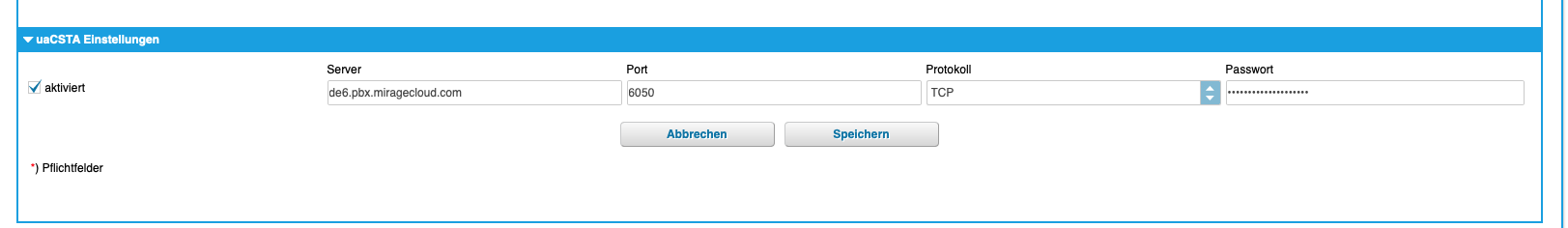

Select: uaCSTA, type in the Mirage uaCSTA Cloud IP, Port and password (see above). You have to restart your Desk Phone once the configuration is done.

If the uaCSTA option cannot be modified, uncheck: use Site configuration in the configuration section.





It is mandatory to use as server de6.pbx.miragecloud.com.

Password is: miragecloud

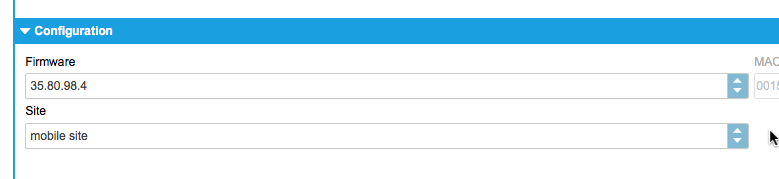

Check firmware. Always select the latest version (minimum firmware requirements see above)





After making the changes, the desk phone needs to be restarted.



It is mandatory to select the deskphone as primary device ( Targets / select extension / Phone devices)











Required Call Center settings for Nfon

The following settings are required in the  Call Center Adapter



Outside Prefix = 0

Incoming Call - Truncate Prefix = 0;#01;#1



Depending on group option the phone number can be signaled as #0 to #99. You have to define all possible formats used and check the option: Do not truncate long distance prefix.

See Complex Rules





For SoftPhones no Login ID is required. Only if you mix SoftPhones and Desk Phones, you need to use the Login ID also for Softphones. It is the Salesforce ID (E-Mail address)

If you are using Desk Phones, you have to enable the option to use an own Login ID.



After configuring the handdsets, open a ticket in the Support Center with the following information



Direct extension of the Desk Phone. If you configured several Desk Phones specify all extension numbers

Nfon user number ID starting with K

Each Desk Phone needs a unique Login ID. It is possible ot use the Nfon user number (number with K). For security reasons a 20 digit ID is recommended which is known only to you. Generate ID (external Web service). Provide this ID in the ticket for each Desk Phone

Once you get the the Desk Phone activated from support add the Login ID in the user record.
